Product Description

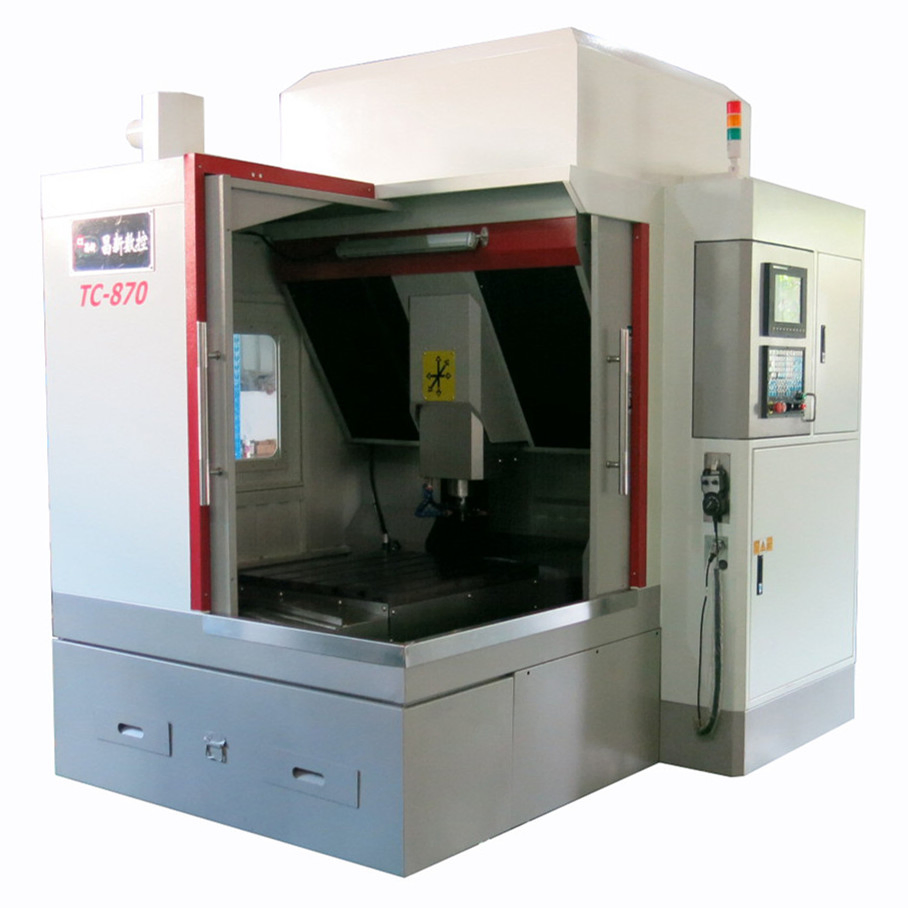

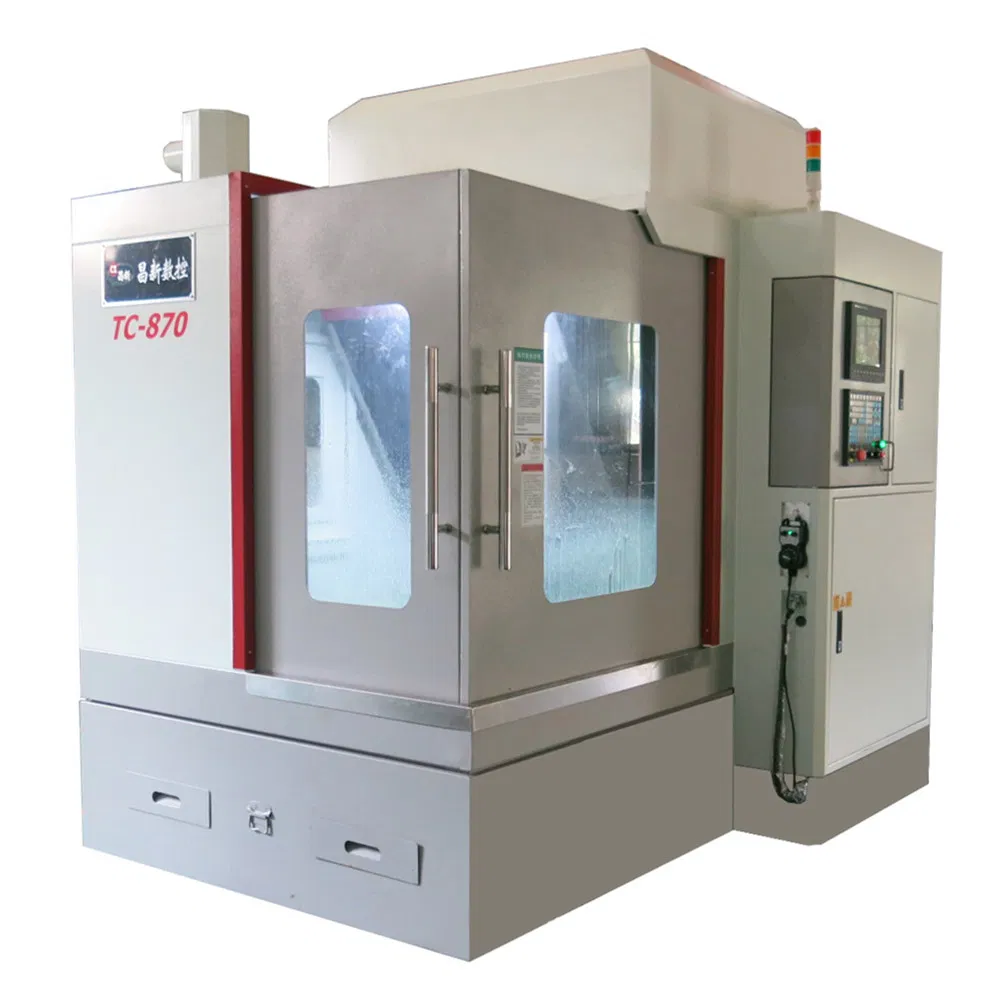

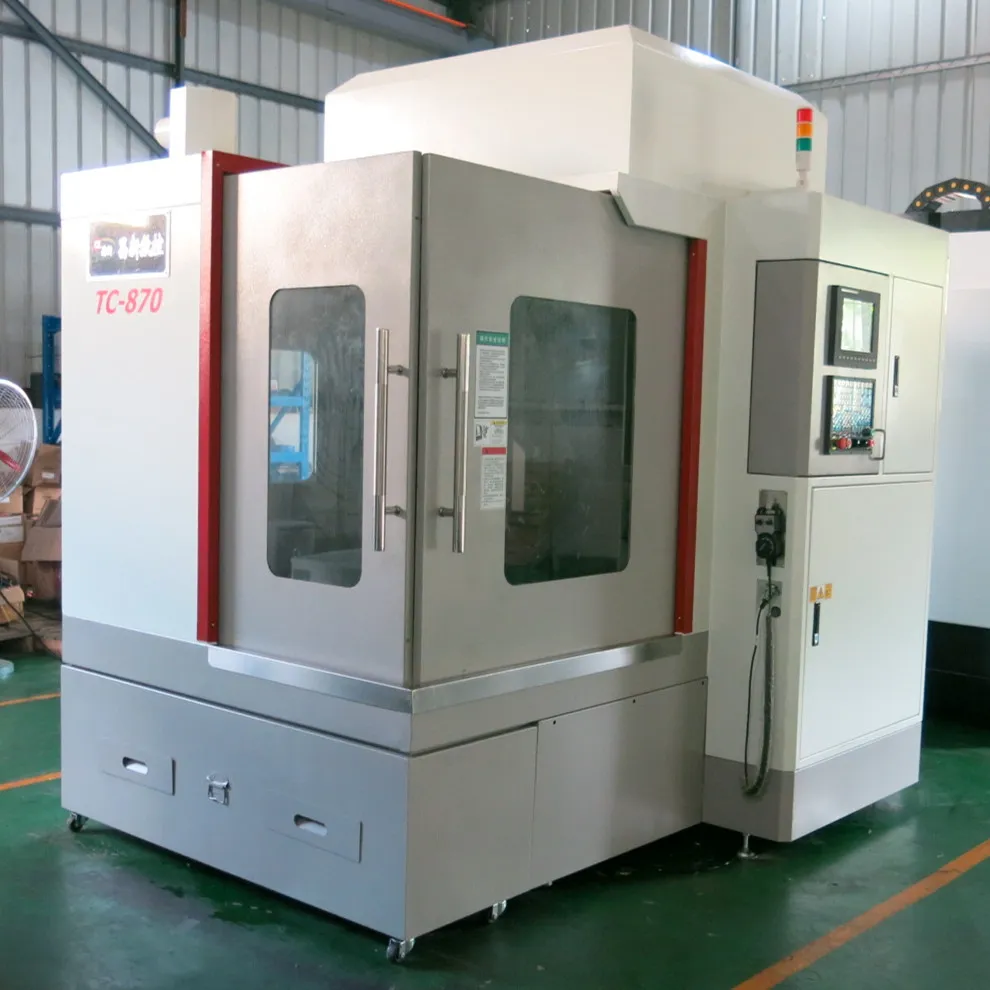

CE Certified CNC Metal Engraving Milling Machine CNC Engraving Machine for Metal Plates TC-870

Specifications

Table	Size	mm	850*670
	Travel of 3 axis(X/Y/Z)	mm	800/700/300
	Max table load	kg	300
T-slot	Numberwidthspace	mm	514T85
Spindle (direct drive)	Spindle taper		Taiwan Electric Spindle ER25
	Spindle nose to table	mm	120-470
	Max spindle speed	rpm	18000
	Spindle Motor power	kw	5.5
Accyracy	Positioning accuracy	mm	±0.005/300
Accyracy	Repeatability	mm	±0.003/300
Axis motor	Power of X/Y/Z	kw	0.85/0.85/0.85
Feeding Speed	Rapid feed of X/Y/Z	mm/min	15000/15000/15000
Feeding Speed	Cutting feed of X/Y/Z	mm/min	12000
Parameters	Weight	kg	3500
	Dimension(LWH)	mm	240023502700mm
	Power	v	380/415
Bearing	Japan NSK or German FAG optional
Linear guide rail and ball screw	Taiwan Hiwin
Coupling	German BK3 SW*J
Main electrical accessories	German Schneider, Merlin Gerin
Circuit breakers and relays	German Schneider, Merlin Gerin
Working LED lamp	Taiwan
Hand control electronic hand wheel	Taiwan
Tool Magazine	optional
Control System	Taiwan Syntec, Japan Mitsubishi, Japan Fanu , Germany Siemens optional
Motor	Japan YASKAWA /Mitsubishi /Fanuc/Siemens Servo Motor
Accessory	1.Tool box (1 set) 2.Tool auto-checking instrument(1 set) 3.vise and Lock knife seat (1 set) 4.High pressure spray gun(1 pcs) 5.Chip conveyor 6.Oil cooling station 7.Collets (4 pcs) 8.Hand Wheel(1 pcs) 9.Machine operating manual 10.Operation and programming manual 11.Servo Motor and Controller Manual

Payment Term:
Payment:30% deposit,the balance will be paid before shipping.

Delivery:
20-30 days after received the deposit payment.

Remarks:
1.Warranty:One year free warranty and life time maintenance.
2.Loading port: Shenzhen/Guangzhou
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.

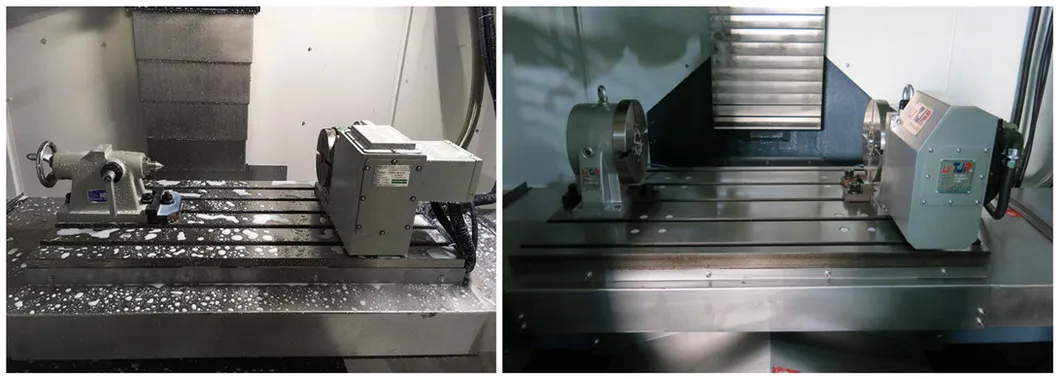

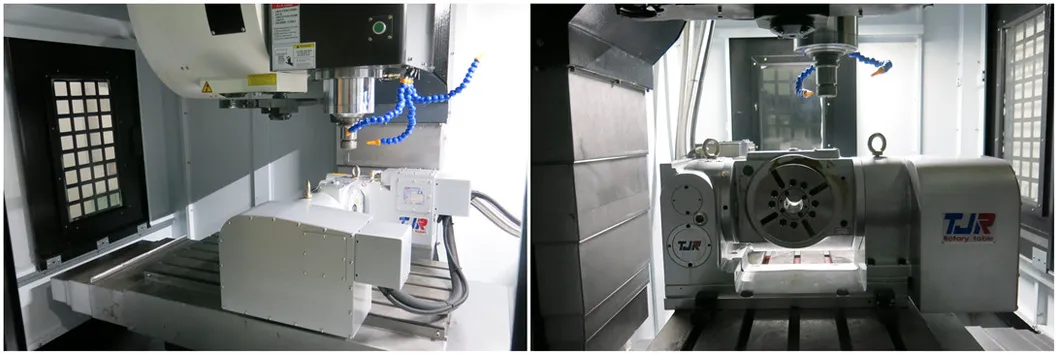

4th/5th axis rotary table optional

Our Certificates
