Fanuc Siemens Controller CNC Milling Machine Vmc1160L Bt40 Spindle Taiwang Brand Linear Guide-Way Vertical Machine Center
CNC milling Machine VMC1160L/Linear guide- WayFEATURES1.Precison linear guide-way2.Swing-arm ATC can realize rapid tool change and suitalbe for the high-efficient machining3.The use of optional accessory of auto chip conveyor can readuce the labor force much .SPECIFICATIONVMC1160L Specification X ax......
Send Inquiry
Product Description
CNC milling Machine VMC1160L/Linear guide- Way
FEATURES
1.Precison linear guide-way
2.Swing-arm ATC can realize rapid tool change and suitalbe for the high-efficient machining
3.The use of optional accessory of auto chip conveyor can readuce the labor force much .
SPECIFICATION
MACHINE PHOTO
MANUFACTURING CAPABILITY
FEATURES
1.Precison linear guide-way
2.Swing-arm ATC can realize rapid tool change and suitalbe for the high-efficient machining
3.The use of optional accessory of auto chip conveyor can readuce the labor force much .
SPECIFICATION
| VMC1160L Specification | |
| X axis travel | 1100mm |
| Y axis travel | 600mm |
| Z axis travel | 600mm |
| spindle nose to table | 120-720mm |
| Spindle center to column | 650mm |
| Leadscrew dia. | X/Y/Z -40mm |
| Linear guide width | X/Y/Z -45mm |
| Feeding | |
| X Rapid feed | 36m/min |
| Y Rapid feed | 36m/min |
| Z Rapid feed | 36m/min |
| cutting feed | 1-10m/min |
| X,Y,Z axis torque | 10 N.m |
| Servo motor power | 3*3*4.5KW |
| Tool change type | Manipulator type ACT |
| Tool magazine number | 24pcs |
| working table | |
| working table size (X/Y) | 1200*600mm |
| T Slot | 18*5*110mm |
| Spindle | |
| Standard type | Belt type |
| Spindle speed | 8000rpm |
| Spindle taper | BT40 |
| Main motor power | 15/18.5KW |
| Machine weight | 7500KG |
| Overall size | 3600*2900*2950mm |

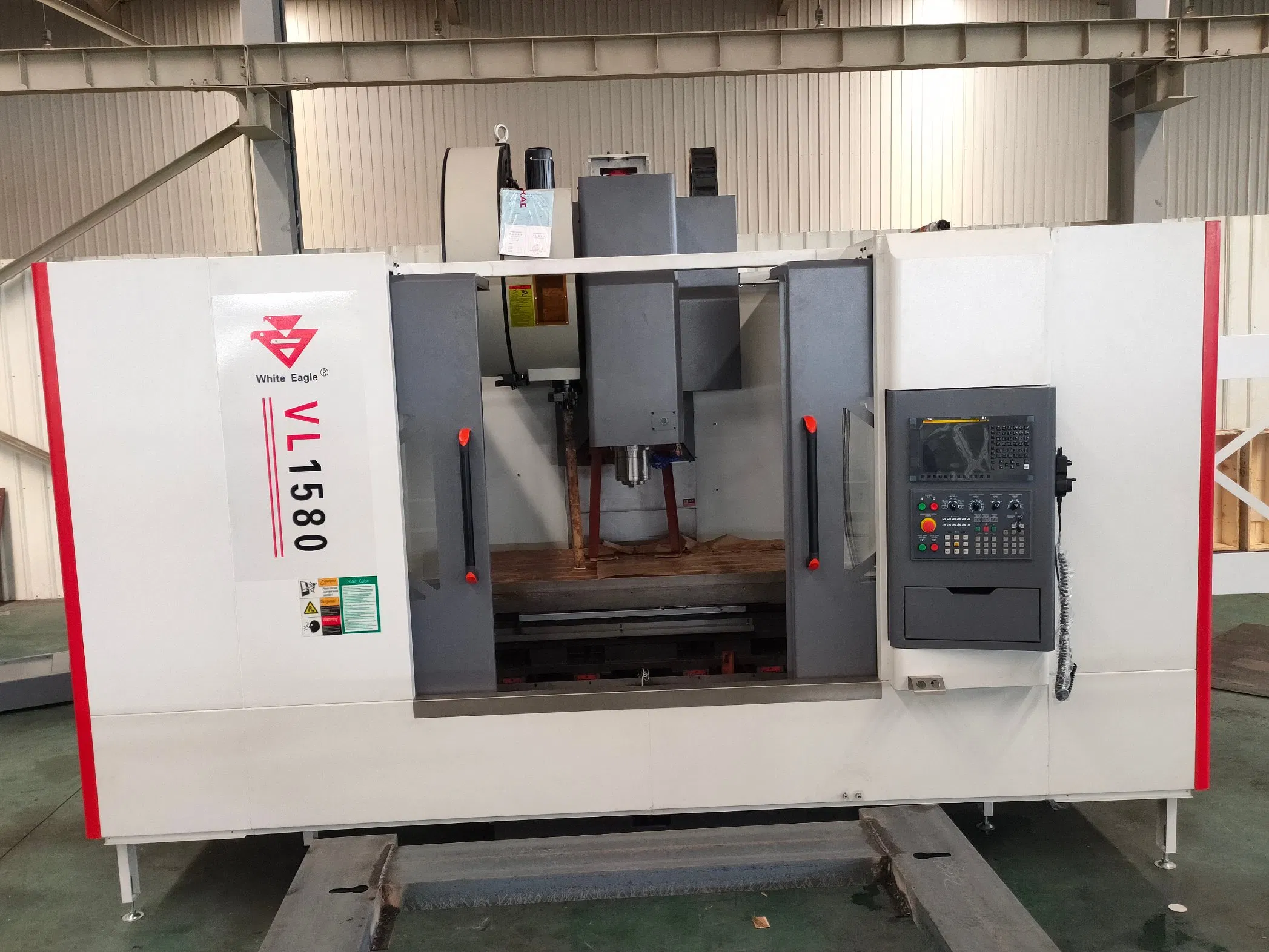

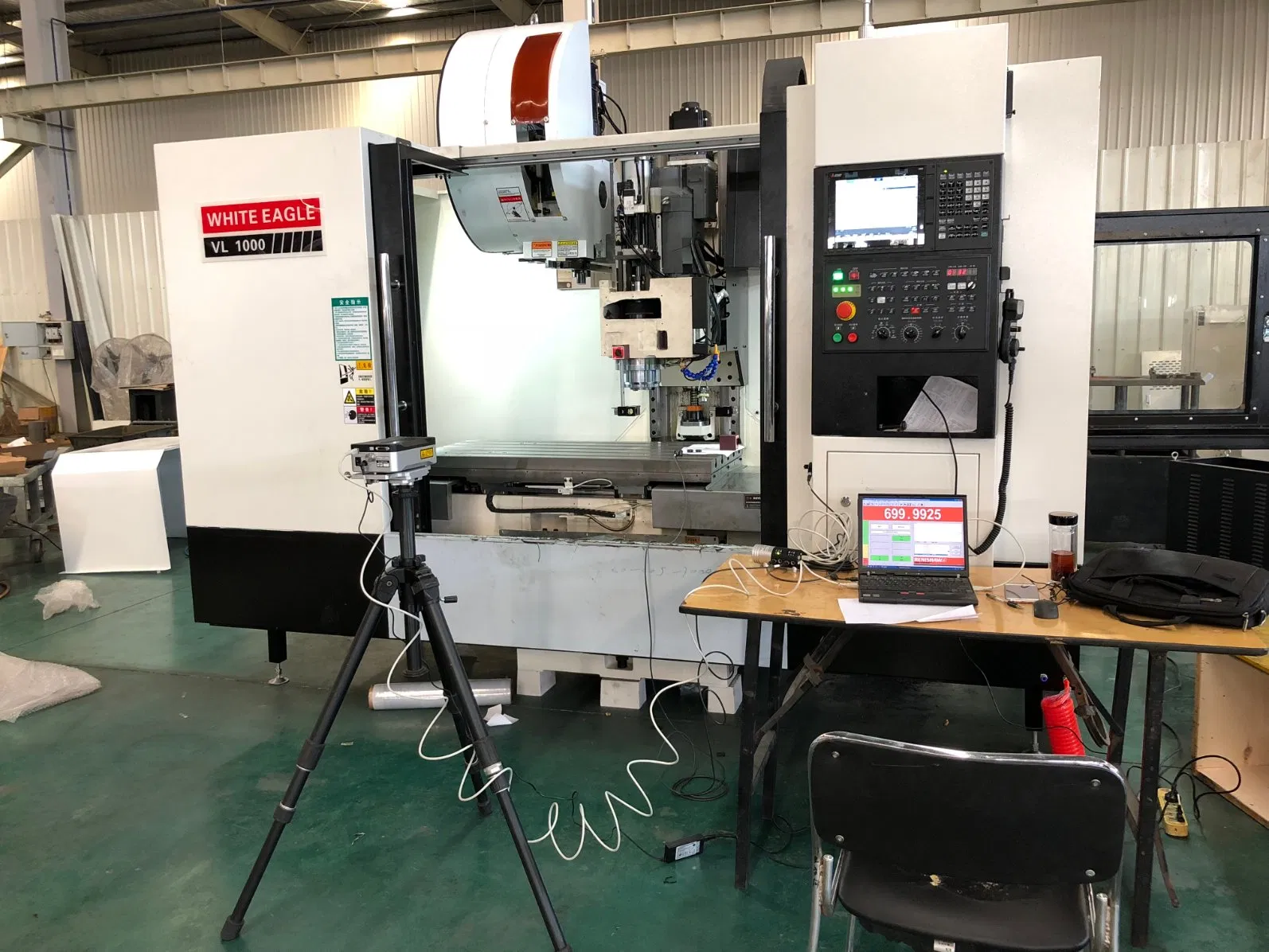

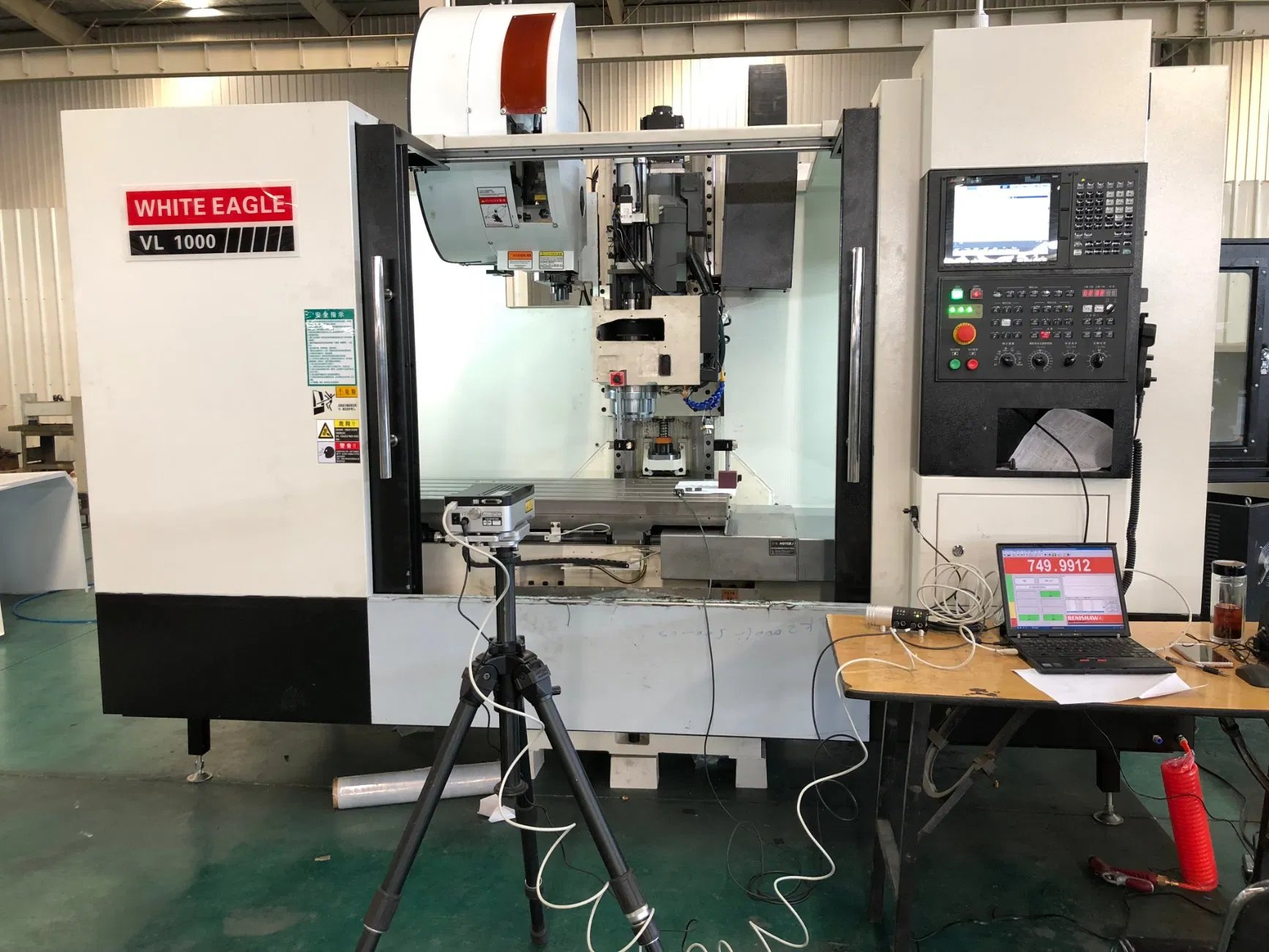

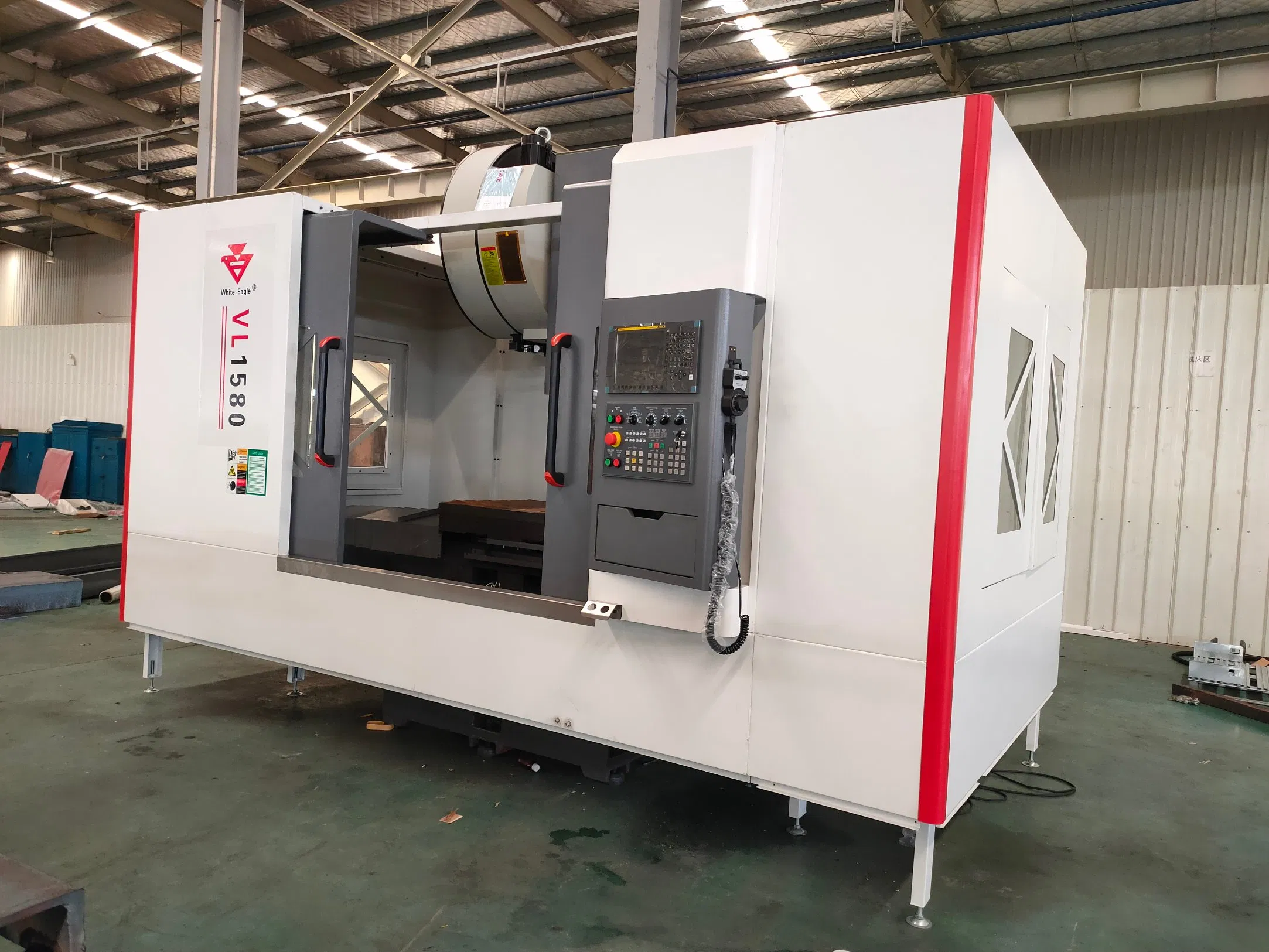

MACHINE PHOTO

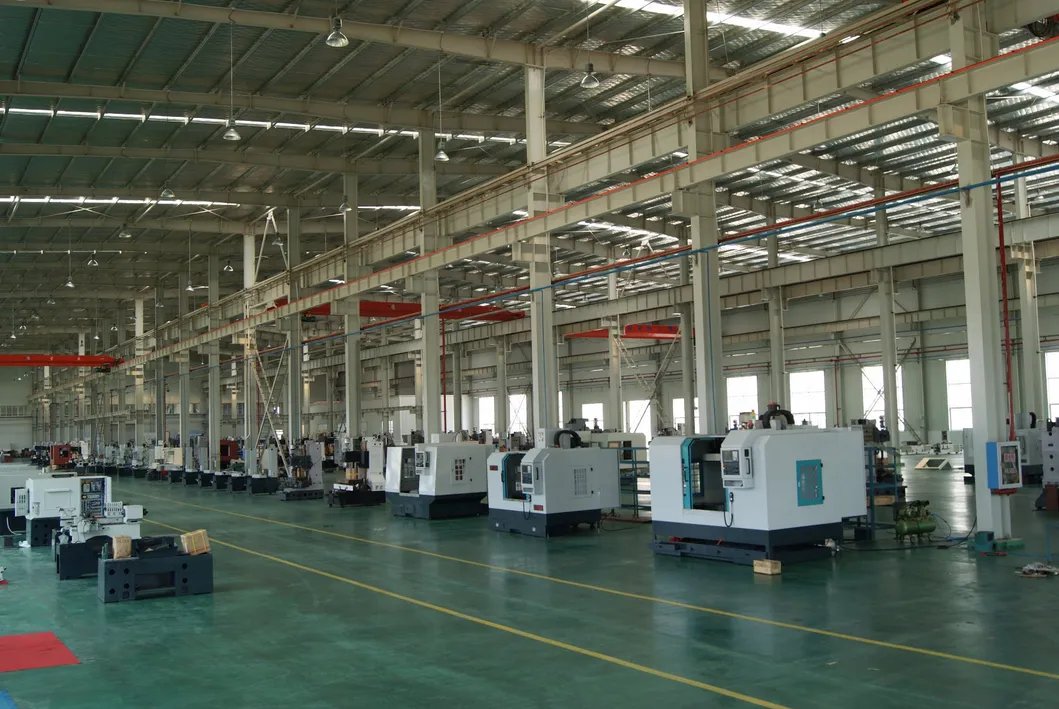

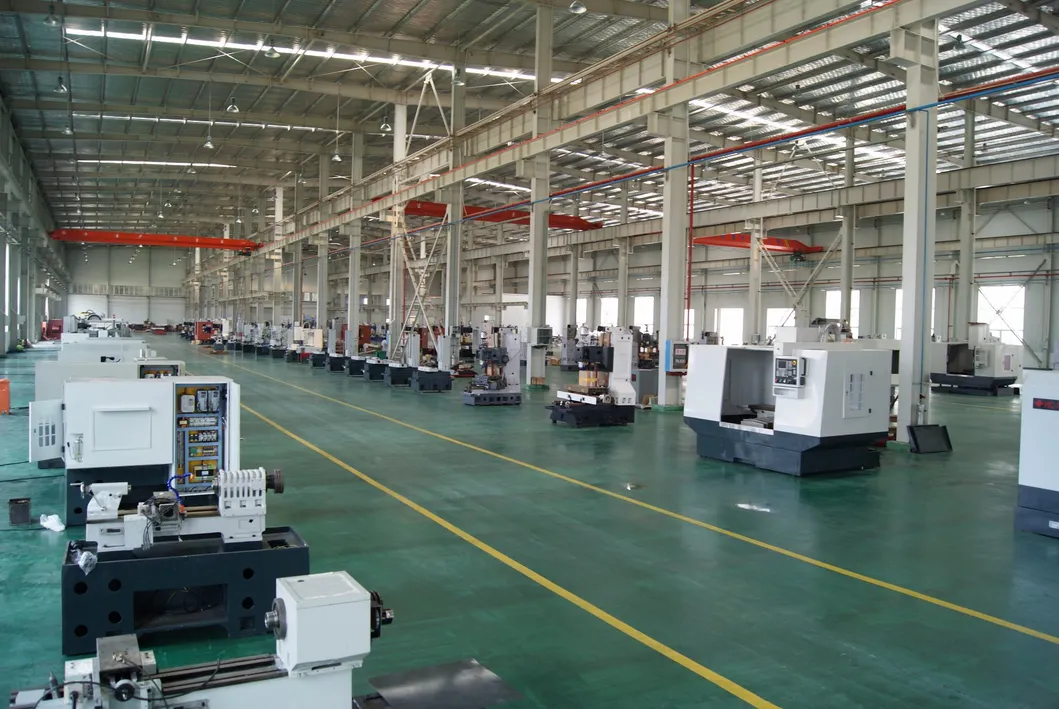

MANUFACTURING CAPABILITY
