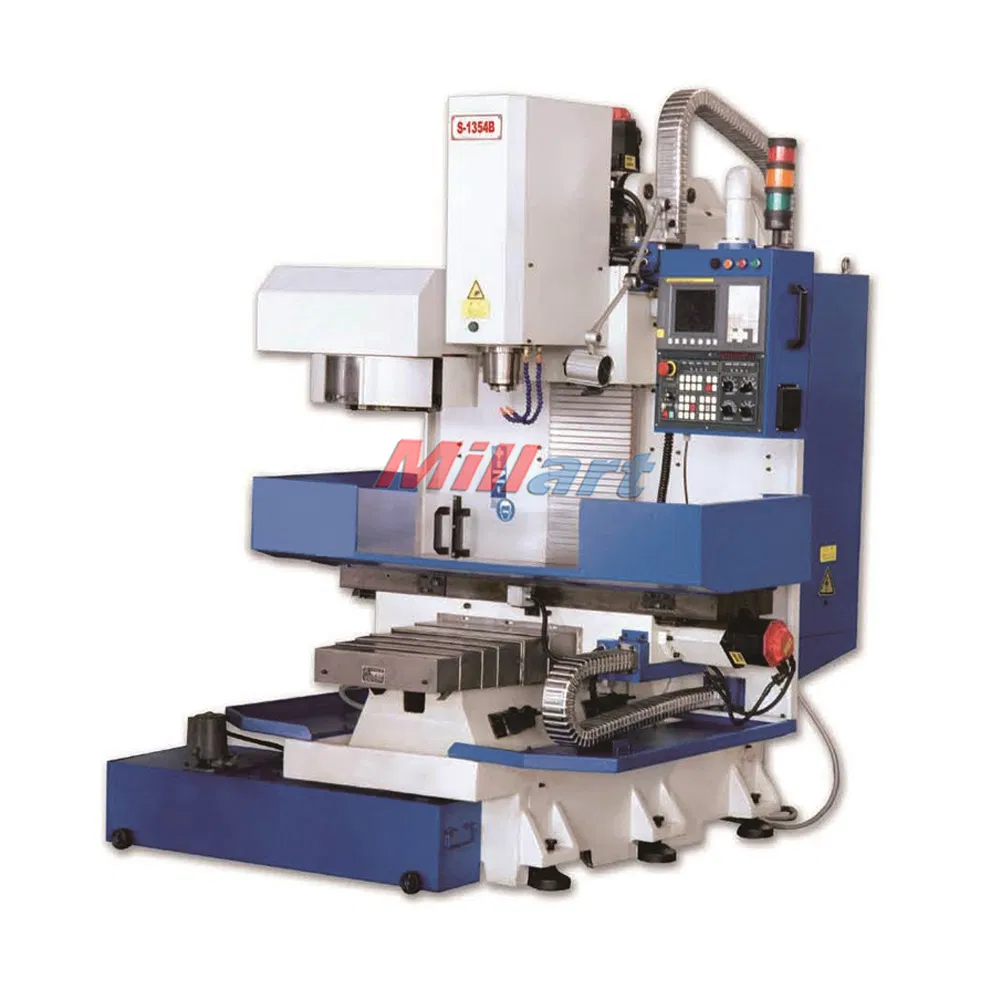

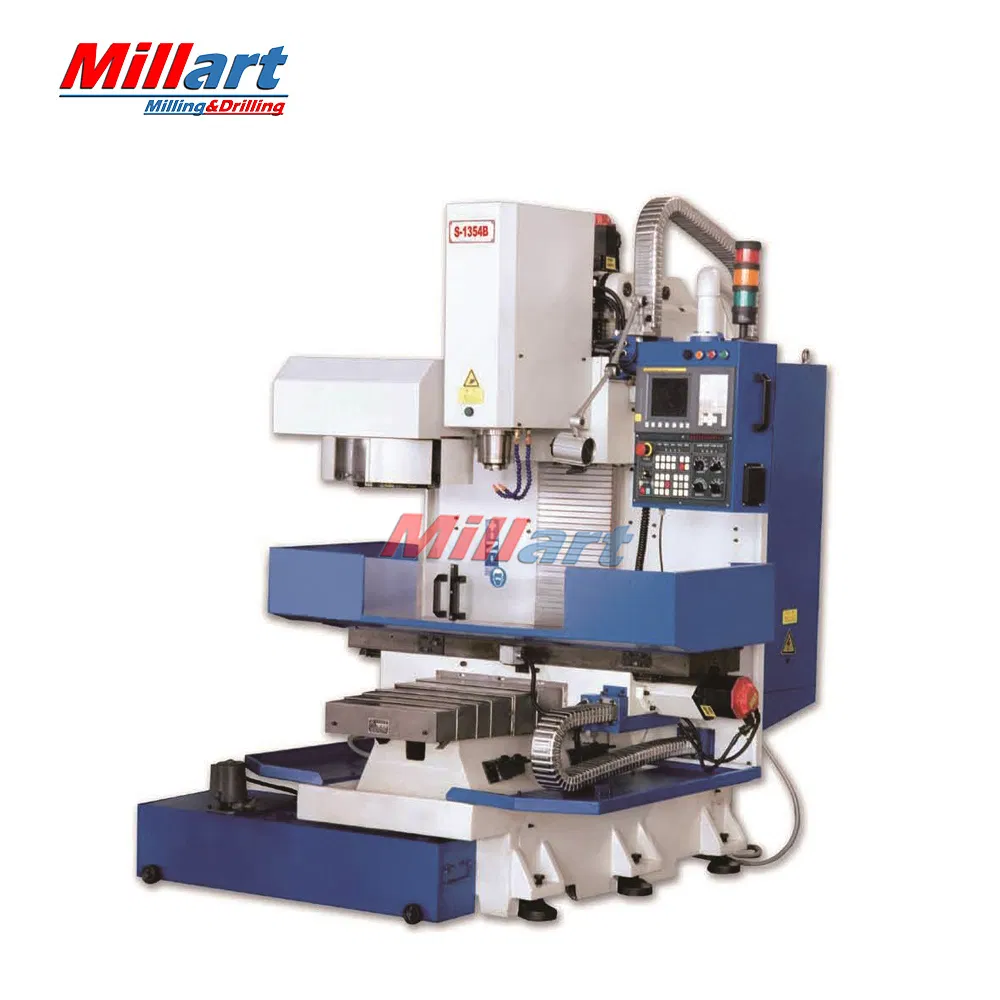

Heavy Duty of CNC Milling Machine (CNC Milling Machine S1354B S1654 S2063 S2473)

S series Universal Vertical CNC milling machine
Introduction:
1. Main parts produced at TAIWAN production base.
2. Machine adopt GERMANY technology, main technology guided by GERMANY engineer.
3. Providing machine as OEM form for GERMANY Company as long term.
4. Full production is supervised by TAIWAN engineers.
5. CE Certificated, machine produced strictly according to CHINA National Standard and CE Safety Standard.
Features:
1. High Quality, high precision, high stability.
2. Beautiful appearances.
3. Guide way fully closed by Protection Shield.
4. Spindle Parts made by TAIWAN SHUENN-JIA, assembly in China Mainland. Dishing Connection Spring made in Germany. (For CNC Milling Machine); TAIWAN Integral High Speed Spindle Unit, inside NSK Original Bearings(For Machining Center).
5. Machine bearings use China No. 1 Brand-HRB P4 Class.
6. CHINA Top Class high quality Spindle Motor, itself have Frequency Conversion Function(for CNC Milling Machine), Machining Center use Servo Motor.
7. TAIWAN Brand special Air-Oil Compound Pressure Adding Cylinder
8. TAIWAN Brand Pneumatic Parts (Air Valve, Air Pipe etc)
9. Special Fireproofing Circuit Board and Groove.
10. CE Safety Standard Electric Cabinet Power Switch.
11. TAIWAN Funnel Type Tool Magazine(12pcs)(for Machining Center)
Technical Parameter :

Model		Unit	S-1354B	S-1654	S-2063	S-2473
Table size		mm	1370*330	1370*406	1600*510	1854*610
Table loading capacity		kg	400	800	1200	1500
T-slots		mm	16*3	16*5	18*5	18*5
Travel X-axis		mm	800	1000	1200	1500
Travel Y-axis		mm	450	480	700	700
Travel Z-axis		mm	480	600	600	700
Max move speed		mm/min	8000	8000	10000	10000
Max feed speed		mm/min	3000	3000	4000	4000
Spindle speed		Rpm	40-6000
Spindle nose			BT40	BT40	BT40/BT50	BT40/BT50
Spindle motor		kw	5.5	7.5	7.5	7.5
Servo motor		kw	X/Y:1.0/Z:1.5	X/Y/Z:1.5	X/Y/Z:2.0	X/Y/Z:2.0
Spindle quill diameter		mm	Φ120	Φ150	Φ150/Φ160	Φ150/Φ160
Distance from spindle to column surface		mm	160-640	20-620	60-660	80-780
Ball screws	X-axis	mm	Φ32*5 P4	Φ32*5 P4	Φ40*10 P4	Φ40*10 P4
	Y-axis	mm	Φ32*5 P4	Φ40*5 P4	Φ40*10 P4	Φ40*10 P4
	Z-axis	mm	Φ32*5 P4	Φ40*5 P4	Φ40*10 P4	Φ40*10 P4
Positioning accuracy		mm	±0.015
Repeatability		mm	±0.008
Packing size		mm	22502280 2450	25002280 2650	29002950 2800	29003150 2900
Machine weight		mm	2600	3800	5000	6000

Standard accessories:
1. Semi isolated table shield
2. Cutting fluid circulation system
3. Auto lubrication system
4. Spindle air flow
5. Lamp
6. Pause lamp
7. Leveling adjusting screw and block
8. Clamping apparatus
Optional accessories:
1. Spindle from POSA spindle
2. Spindle speed: 8000rpm
3. Lead team lead screw made in Taiwan
4. Full closed safety guard
