VMC1270 Heavy Duty CNC Machining Center CNC Milling Machine
Product Description
| ITM | Item | Unit | VMC850 | VMC1060 | VMC1270 |
Travel | X axis | mm | 800 | 1000 | 1200 |
| Y axis | mm | 500 | 600 | 700 | |
| Z axis | mm | 500 | 550 | 700 | |
| Spindle nose to table | mm | 100-600 | 100-650 | 100-800 | |
| Feed | X Y Z rapid feed | m/min | 24 | 24 | 24 |
| Cutting feed | mm/min | 1-8000 | 1-10000 | 1-12000 | |
| Table | Table size | mm | 1000x500 | 1200x600 | 1300x650 |
| Max.load | kg | 600 | 600 | 700 | |
| T slot | mm | 5-18 | 5-18 | 5-18 | |
| Spindle | Speed | rpm | 8000 | 8000 | 8000 |
| Spindle bore | mm | 150 | 150 | 150 | |
| Spindle taper | BT40 | BT40 | BT40 | ||
| Main motor | kw | 7.5/11 | 11/15 | 11/15 | |
| Accuracy | Positioning Accuracy | mm | 0.01/300 | 0.01/300 | 0.01/300 |
| Machine | Size( L W H) | mm | 2700x2300x2500 | 2800x2400x2500 | 3000x2600x2700 |
| Weight | kg | 4800 | 6000 | 7000 |

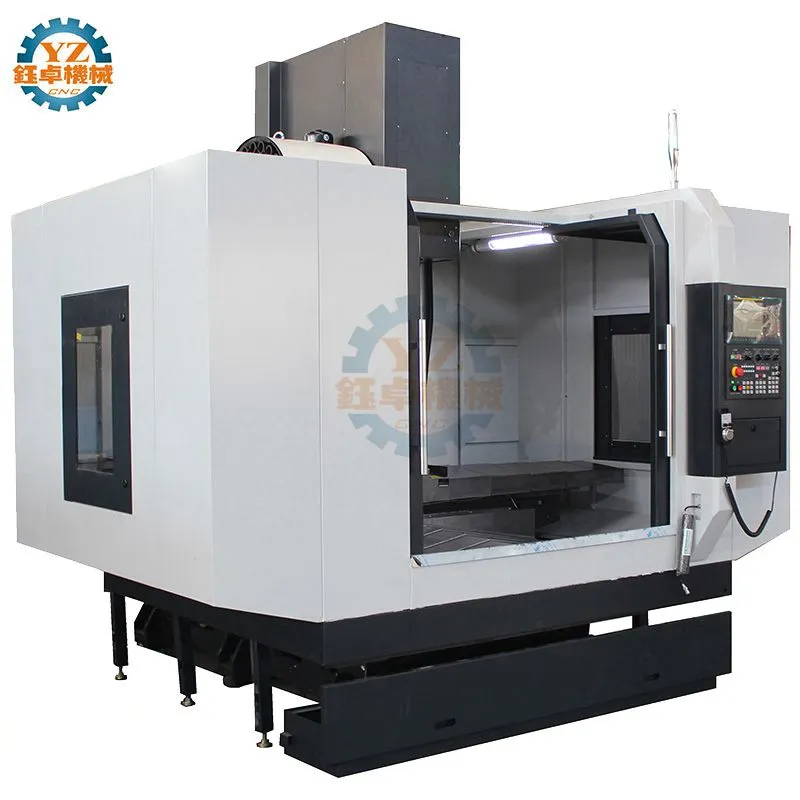

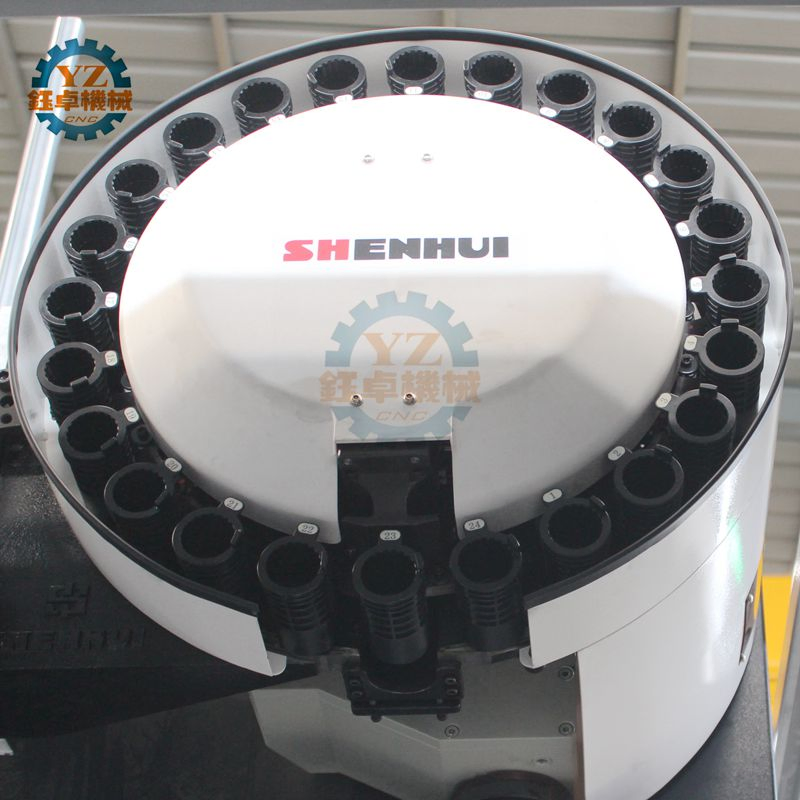

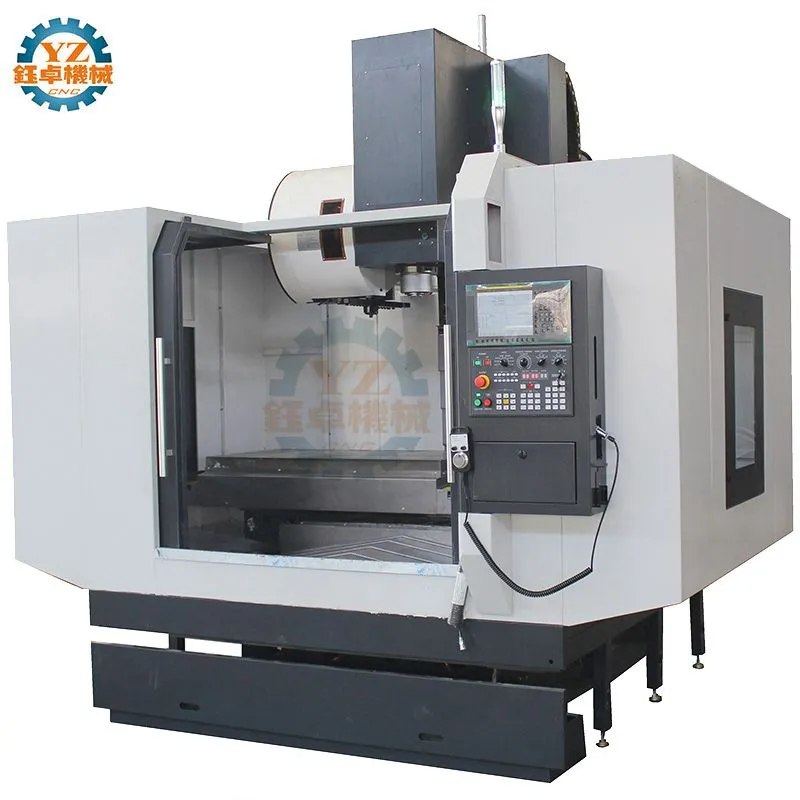

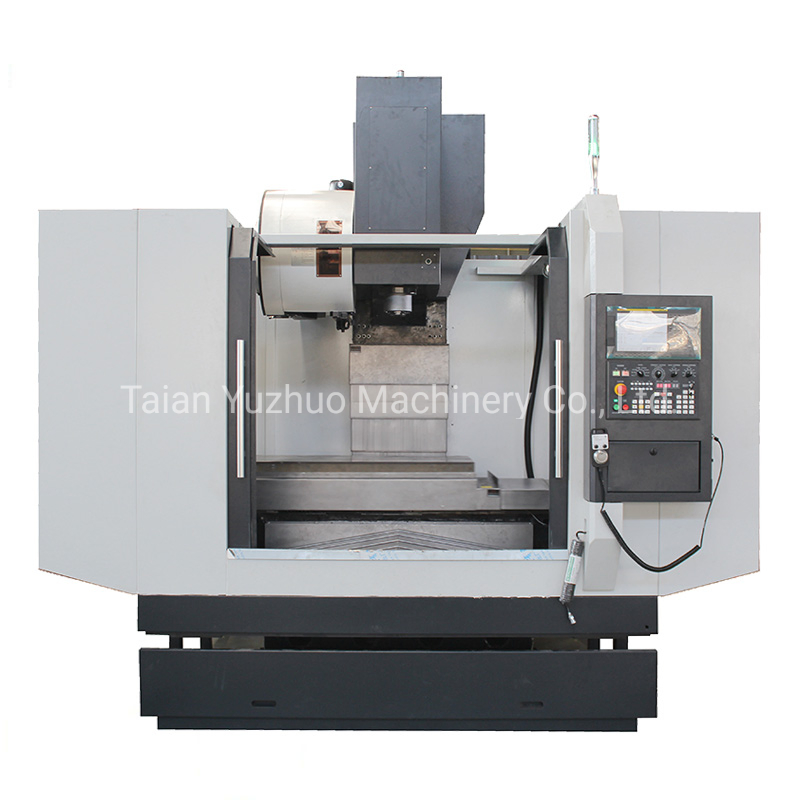

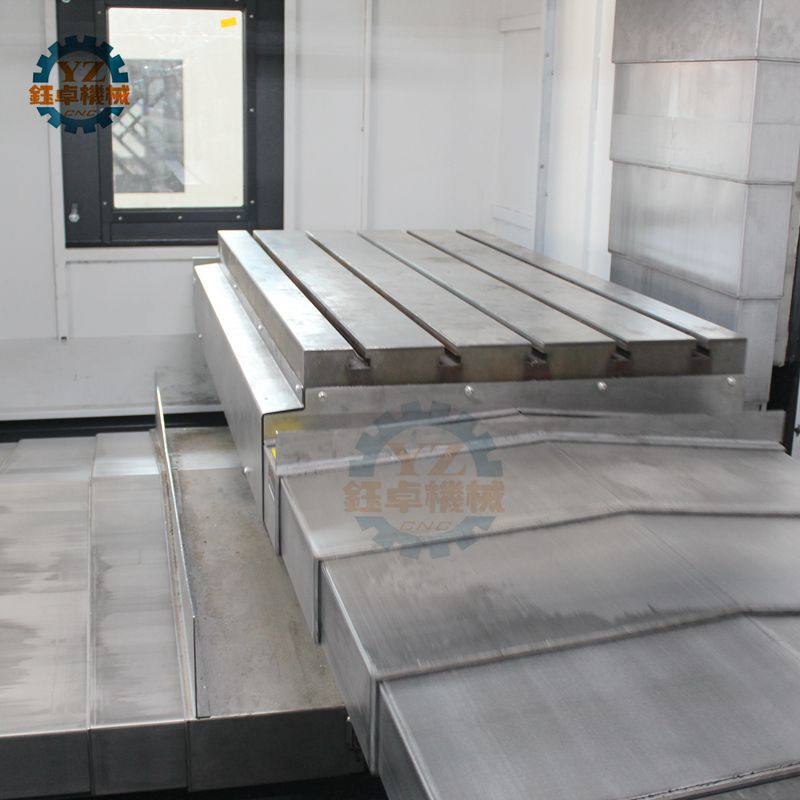

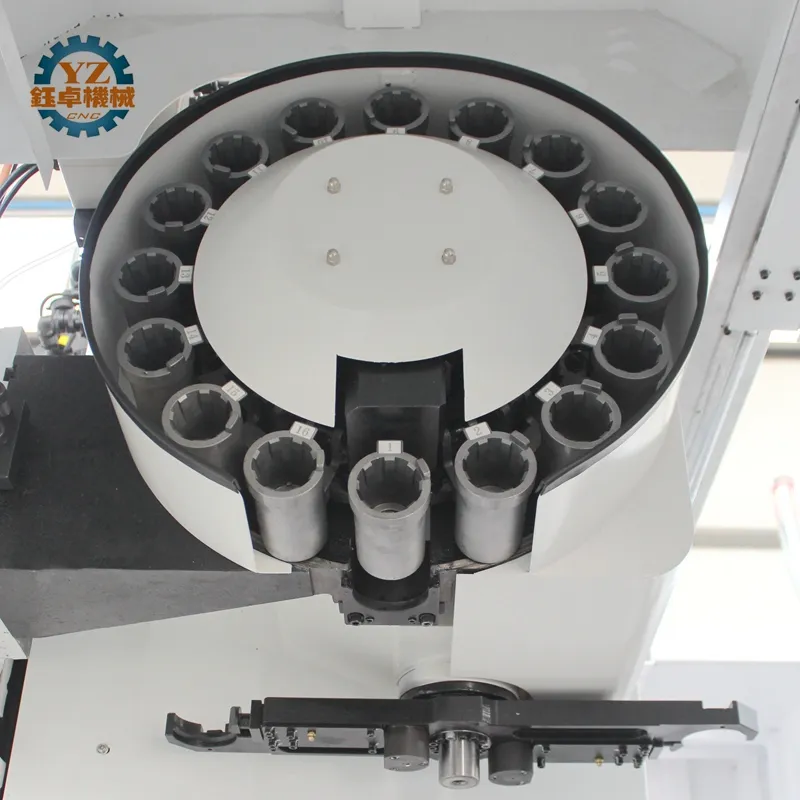

VMC1270 CNC Machining center photos

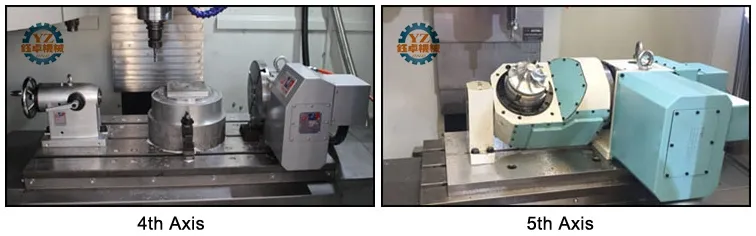

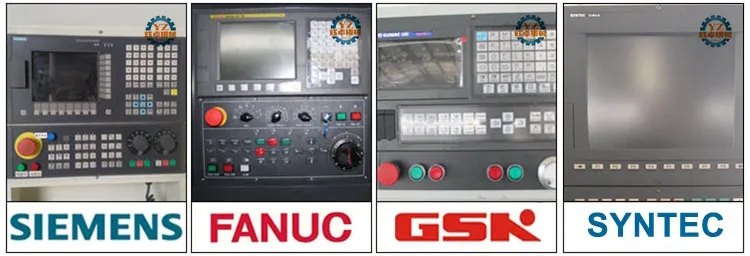

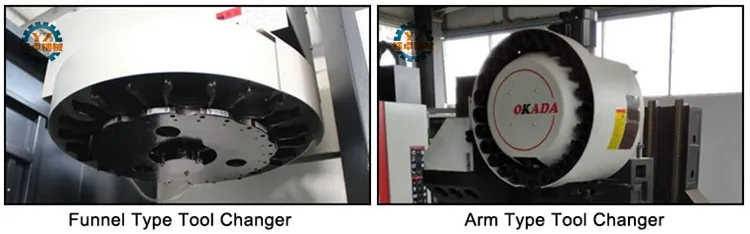

VMC Machining Center Optional Configuration
Company details
CNC Machining Center package
Contact informations
If any interest about our YZ CNC lathe machines, please just contact us for free:
