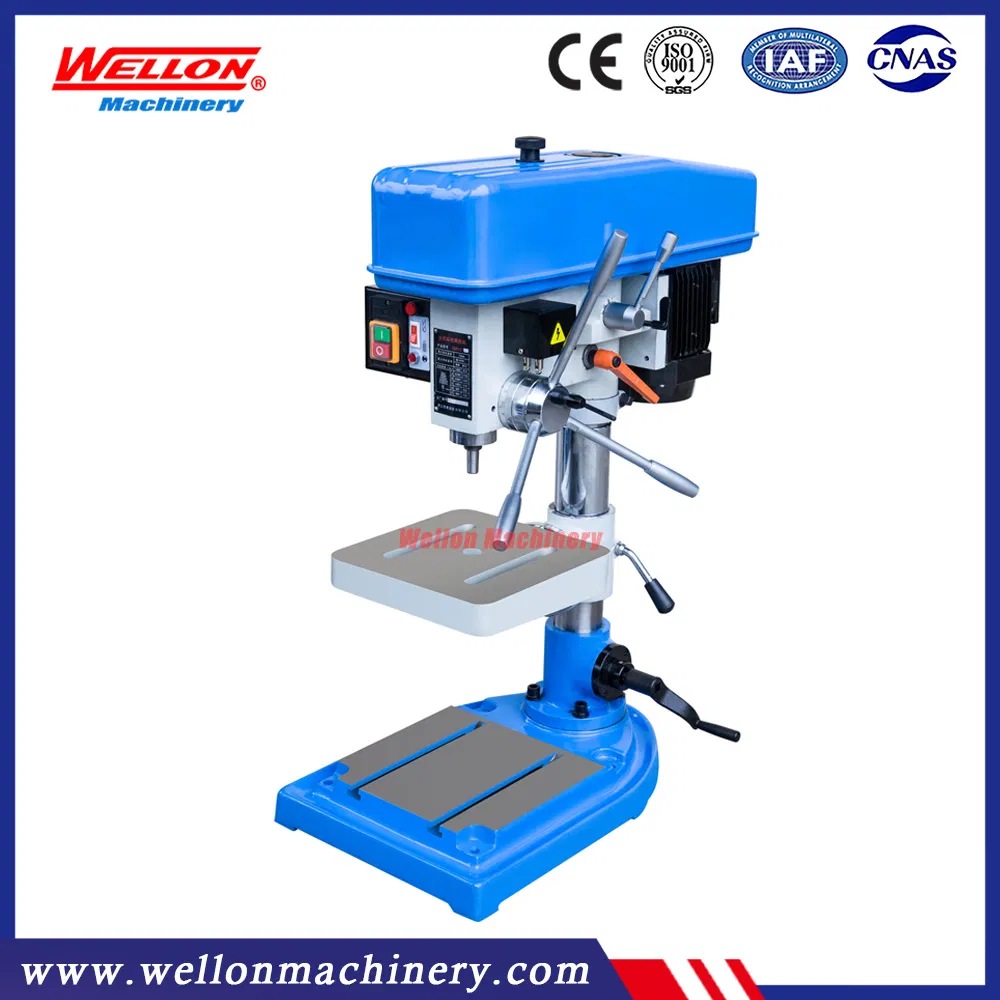

Vertical Drilling Tapping Machine Zs4112D Zs4116D
Performence Features:Drilling and tapping easy to convert.Use famous brand electrical componentsSpecial designed of spindle nose and connect chuck to ensure the reliable connection.Speed changed by belt adjust, very easy to operate.LED work lampSpindle quill oriented deviceTechnical parameter:ModelZ......
Send Inquiry
Product Description
Performence Features:
Drilling and tapping easy to convert.
Use famous brand electrical components
Special designed of spindle nose and connect chuck to ensure the reliable connection.
Speed changed by belt adjust, very easy to operate.

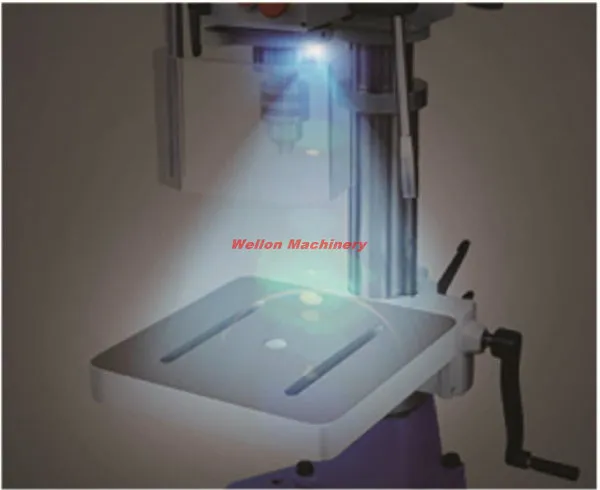

LED work lamp

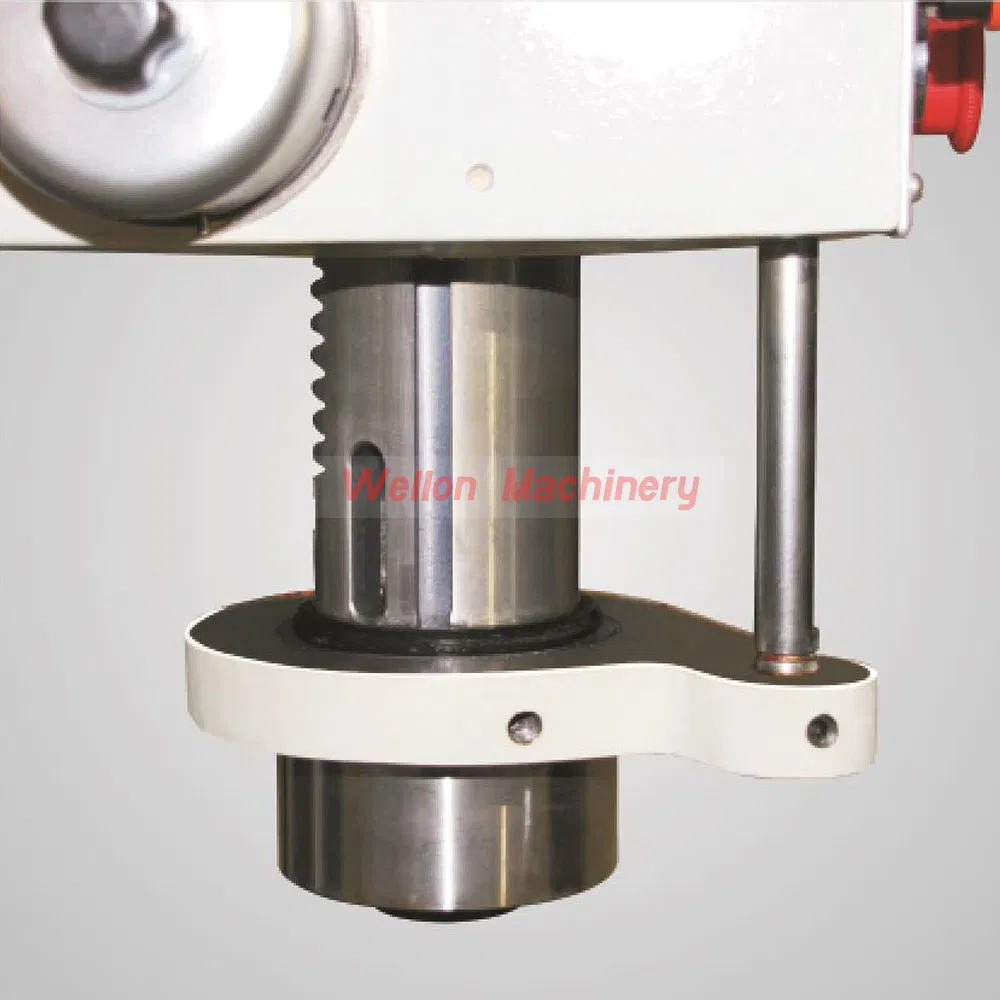

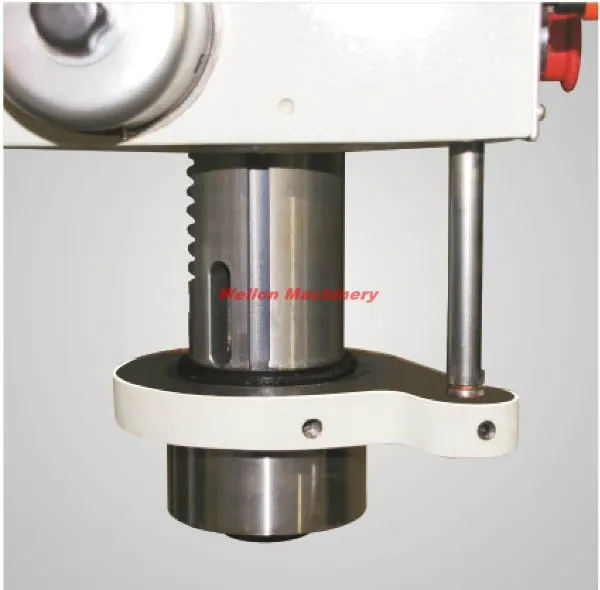

Spindle quill oriented device
Technical parameter:
| Model | ZS4112D/ZS4116D |
| Max.Drilling Capacity(mm) | M12/M16 |
| Max.tapping Capacity(mm) | M10/M12 |
| Diameter of Column(mm) | 70 |
| Spindle Sleeve Diameter(mm) | 50 |
| Spindle Travel(mm) | 100 |
| Distance from Spindle center to Column(mm) | 193 |
| Distance from Spindle nose to Table(mm) | 410 |
| Distance Spindle nose to Base(mm) | 613 |
| Spindle Taper | B16/MT2 |
| Spindle Speed range(r.p.m) | 480-4100 |
| Spindle Speed steps | 5 |
| Dimension of Worktable surface(mm) | 200x230 |
| Dimension of Base(MM) | 528x360 |

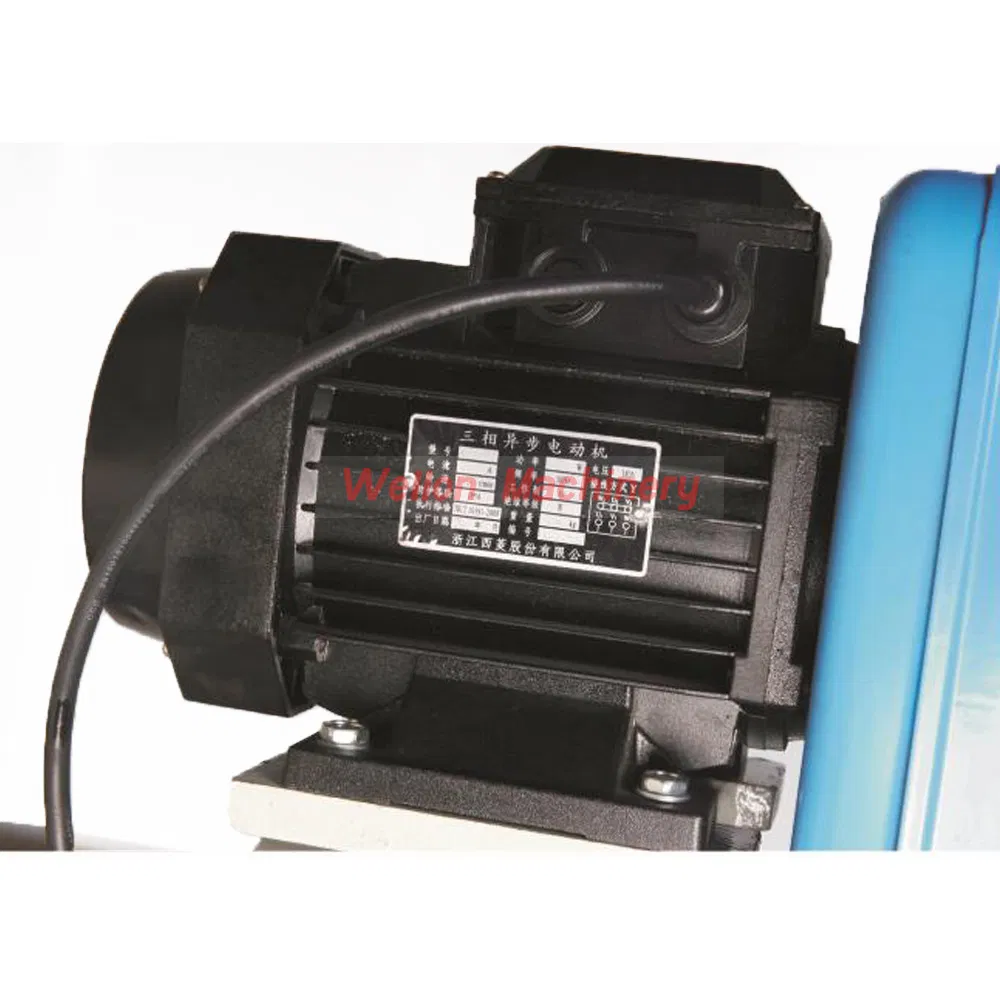

| Motor(kw) | 0.55/0.75 |
| Net Weight(kg) | 90 |
| Packing Dimension(mm) | 77x42x96 |
LED work lamp
Drill chuck
Wrench
Operate manual
Optional accessories:
Machine vice

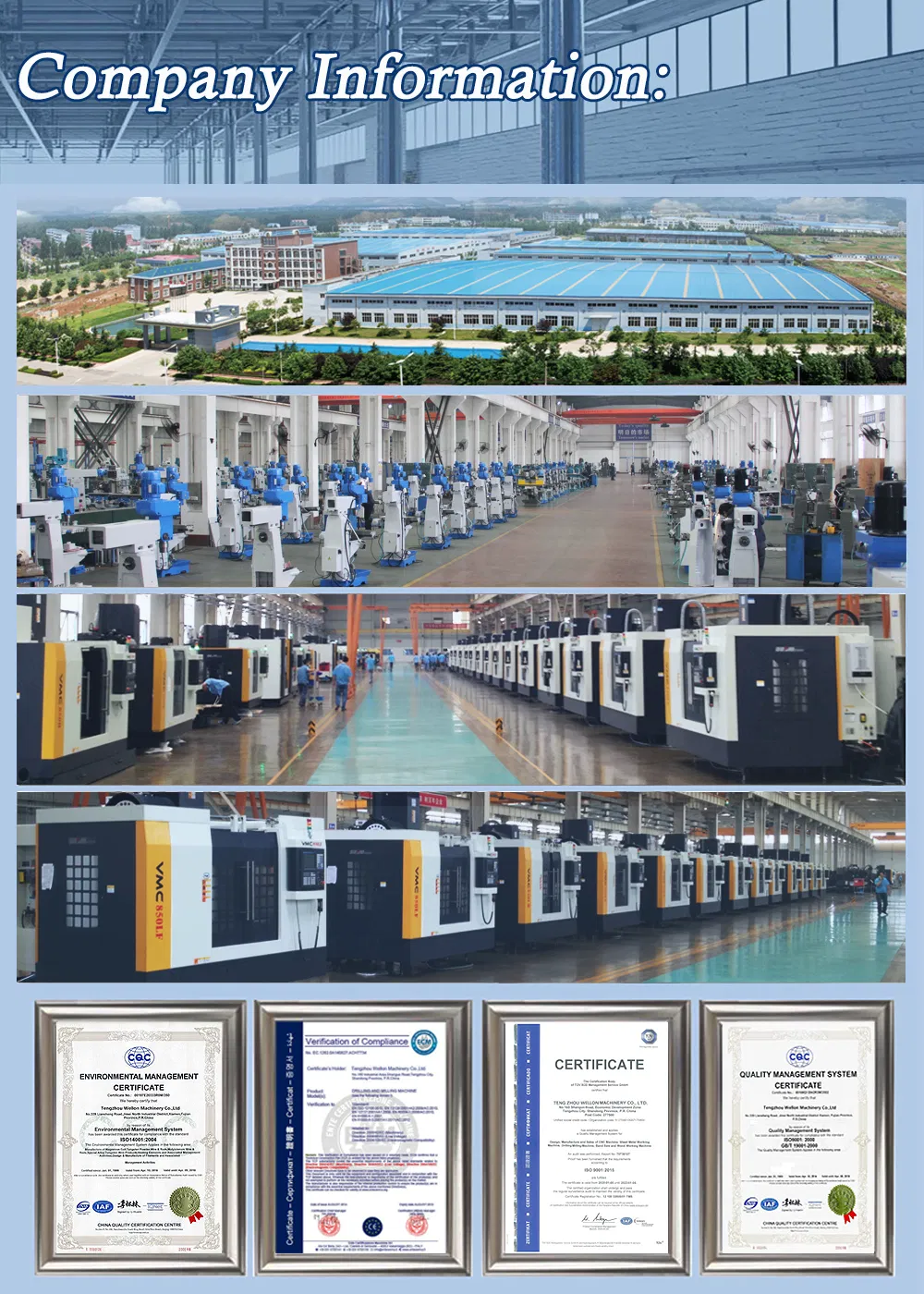

Company Information:
