Product Description

CE High precision manual lathe

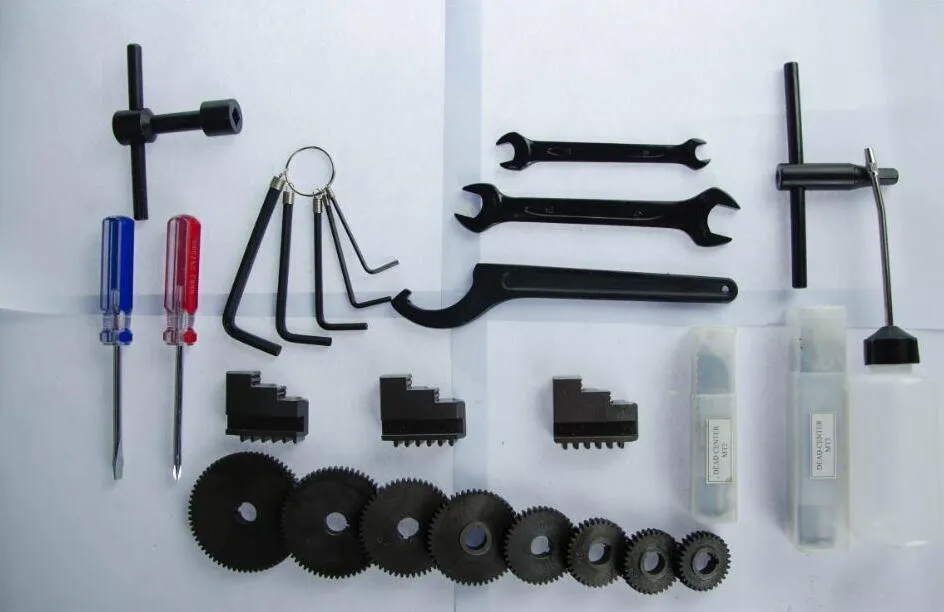

1.Standard acces :

2.Which sold very popular in Bernardo, Holzmann, HBM and so on.

3.Our machine specification:

Specification	WM180V	WM210V
Swing ovr bed	180mm	210mm
Swing over cross slide	110mm	110mm
Distance between centers	300mm	400mm
Width of bed	100mm	100mm
Spindle bore	21mm	21mm
Spindle taper	MT3	MT3
Number of spindle speeds	Variable	Variable
Range of spindle speeds	50-2500rpm	50-2500rpm
Number of metric threads	10	10
range of spindle speeds	0.5-3mm	0.5-3mm
Number of imperial threads	8	8
Range of imperial threads	8-44 T.P.I	8-44 T.P.I
Range of longitudinal feed	0.1-0.20mm	0.1-0.20mm
Tool post type	4	4
Max compoud slide way	55mm	55mm
Max carriage slide travel	75mm	75mm
Max carriage travel	195mm	276mm
Taistock travel	60mm	60mm
Tailstock taper	MT2	MT2
Main motor	450W(600W)	450W(600W)
Weight	60kgs	70kgs
Dimension	800X480X450mm	900X480X450mm

4.FAQ :
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.

2. Question :  Why choose cooperate with us ?
Answer :
                --Reliable Quality and All components from world leading suppliers ;
                --Cost-effective export infrastructure and total supply chain management ;

3. Question :  Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

4. Question : How about machine Warranty ?
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)

Welcome you contact :Ms Alice
