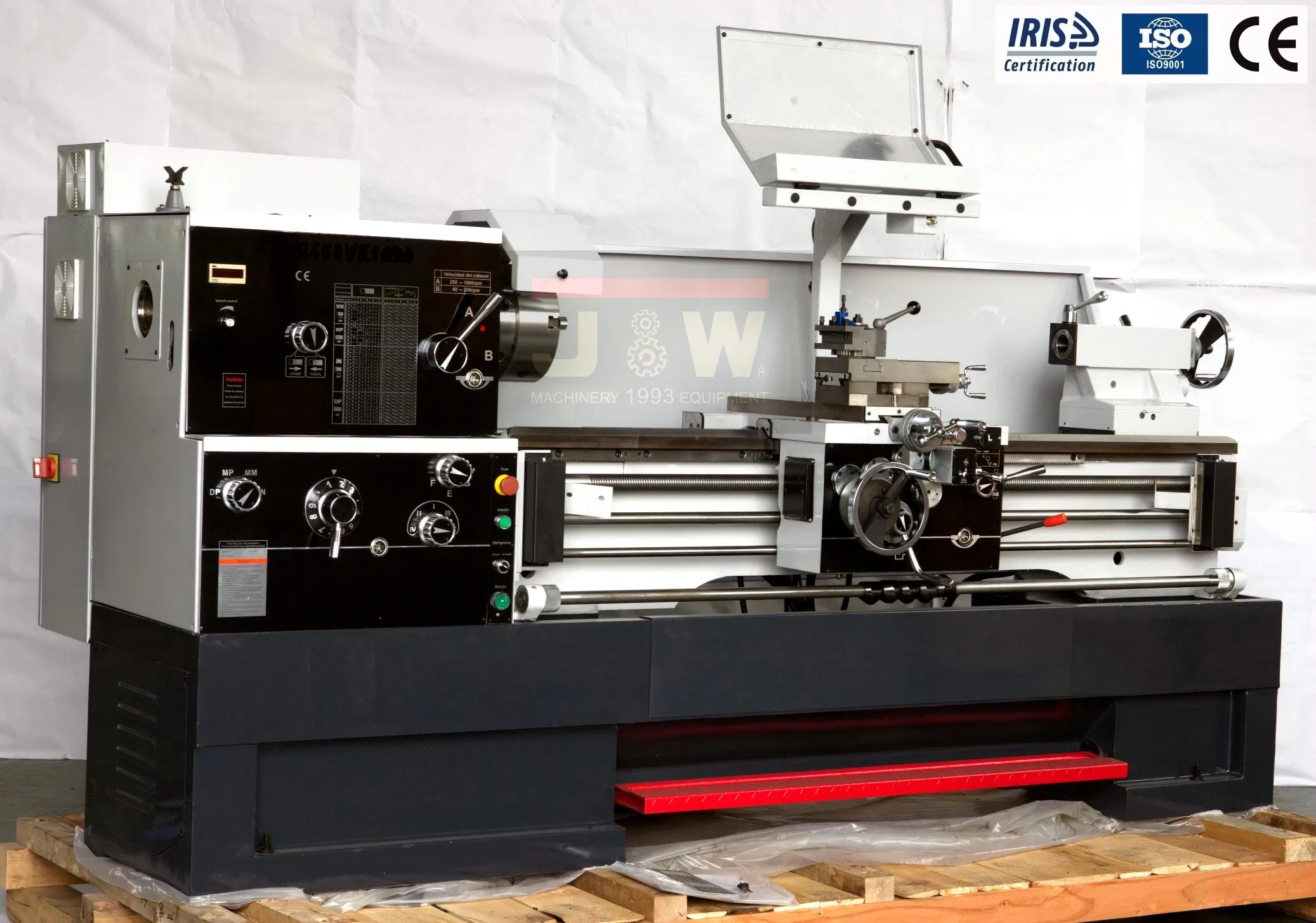

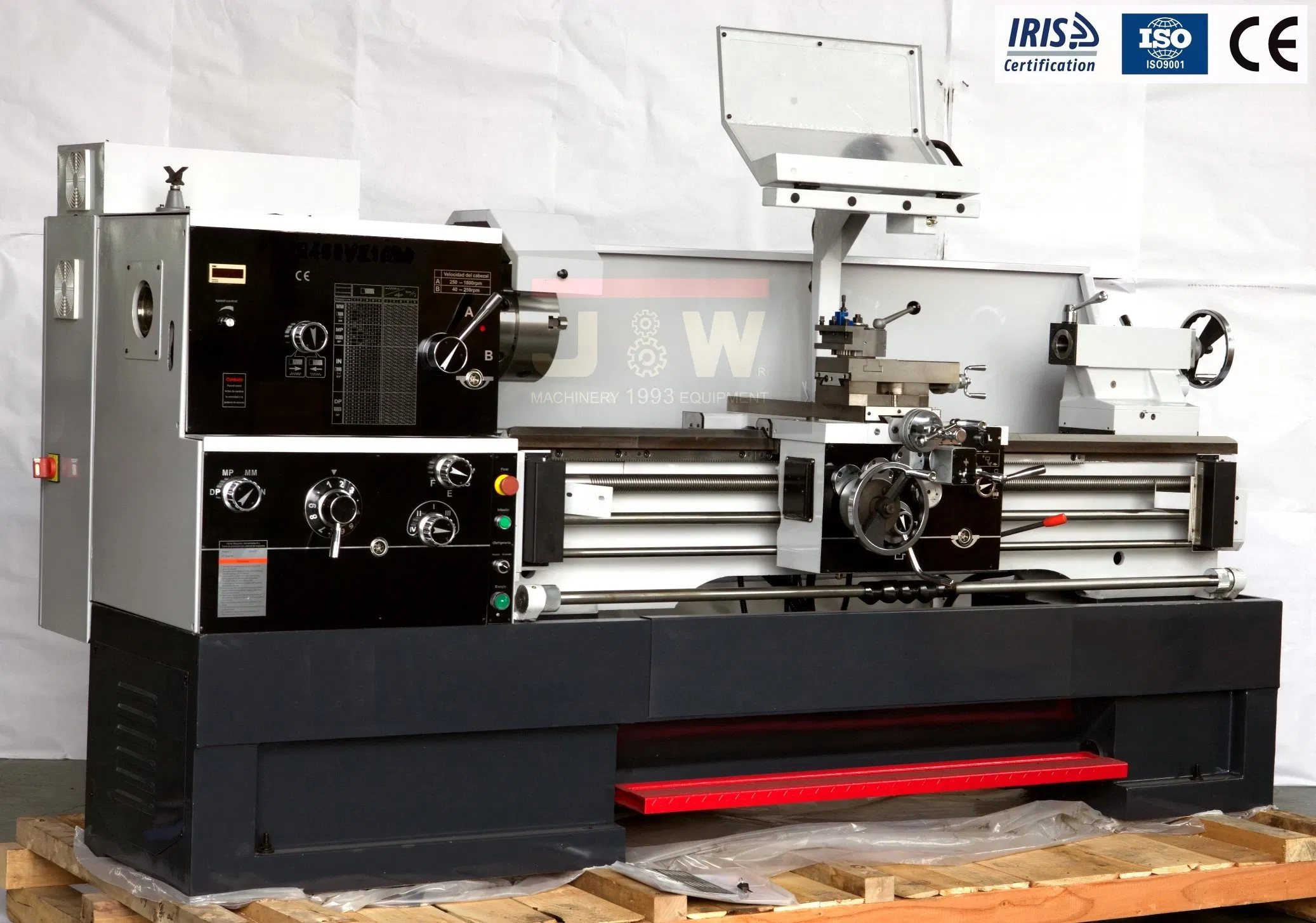

Product Description

FEATURES:

The surface of the bedways is hardened and precision ground. The design of the main drive is optimized and the gears in the headstock are precision ground.

The spindle bore size is 80mm. The spindle system is high in rigidity and accuracy. There is no vibration when turning with a cutting depth of 10mm.

There is no need of changing gears. The machine can turn about 200 kinds of metric, whitworth, module and D. P. Threads including special whitworth threads such as 7-1/2, 9-1/2, 10-1/2, 11, 11-1/2, 13, 13-1/2, 19, 27t. P. I. And pipe threads.

An automatic stopping device is used to realize automatic stop for the machining of a certain length workpiece, which is safe and reliable. A pedal or electromagnetic braking device stops the machine quickly and effectively.

ITEM	C6236ZX(GH1440ZX/GH1460ZX)
MACHINING
Max.swing diameter over bed	Ф360mm
Max.swing diameter over carriage	Ф200mm
Max.swing diameter in gap	Ф600mm
Max.workpiece length	1000mm/1500mm
Effective gap length	200mm
SPINDLE
Spindle bore	Ф80
Taper of bore	M.T.No.7
Number of speed	12
Range of speed	42-1800rpm
THREAD CUTTING
Metric range/No.	0.5~20mm/24
Whitworth range/No.	72~1-5/8T.P.I/61
D.P range/No.	96~3-1/4D.P/45
Module range/No.	0.25~10M.P/20
FEEDING
Longitudinal	0.04~2.46mm(0.0015"~0.00913")
Cross	0.02~1.23mm(0.005"~0.0365")
TAILSTOCK
External diameter	Ф75mm
Taper of bore	M.T.No.4
Max.traverse	130mm
OTHER
Max.travel of compound rest	130mm
Max.cross slide travel	280mm
Max.size of tool shank(WxH)	25x25mm
Power of main motor	5.5kw
Overall dimensions(Lx Wx H)	2310/2810X1100x1255mm
Net weight	2250/2550kg

ITEM	C6240ZX(GH-1640ZX/1660ZX)
MACHINING
Max.swing diameter over bed	Ф400mm
Max.swing diameter over carriage	Ф250mm
Max.swing diameter in gap	Ф660mm
Max.workpiece length	1000/1500mm
Effective gap length	200mm
SPINDLE
Spindle bore	Ф80
Taper of bore	M.T.No.7
Number of speed	12
Range of speed	42-1800 or 25-1800 r/min
THREAD CUTTING
Metric range/No.	0.5~20mm/24
Whitworth range/No.	72~1-5/8T.P.I/61
D.P range/No.	96~3-1/4D.P/45
Module range/No.	0.25~10M.P/20
FEEDING
Longitudinal	0.04-2.46mm(0.0015"-0.00913")
Cross	0.02-1.23mm(0.005"-0.0365")
TAILSTOCK
External diameter	Ф75mm
Taper of bore	M.T.No.4
Max. traverse	130mm
OTHER
Max.travel of compound rest	130mm
Max. cross slide travel	280mm
Max.size of tool shank(WxH)	25x25mm
Power of main motor	5.5kw
Overall dimensions(Lx Wx H)	2310/2810X1100x1255mm
Net weight	2300/2600kg

ITEM	C6246ZX (GH-1840ZX/1860ZX/1880ZX)
MACHINING
Max.swing diameter over bed	Ф460mm
Max.swing diameter over carriage	Ф290mm
Max.swing diameter in gap	Ф700mm
Max.workpiece length	1000/1500/2000mm
Effective gap length	200mm
SPINDLE
Spindle bore	Ф80
Taper of bore	M.T.No.7
Number of speed	12
Range of speed	42-1800 or 25-1800 rpm
THREAD CUTTING
Metric range/No.	0.5-~20mm/24
Whitworth range/No.	72~1-5/8T.P.I/61
D.P range/No.	96~3-1/4D.P/45
Module range/No.	0.25~10M.P/20
FEEDING
Longitudinal	0.04~2.46mm(0.0015"~0.00913")
Cross	0.02~1.23mm(0.005"~0.0365")
TAILSTOCK
External diameter	Ф75mm
Taper of bore	M.T.No.5
Max. traverse	130mm
OTHER
Max.travel of compound rest	130mm
Max. cross slide travel	280mm
Max.size of tool shank (WxH)	25x25mm
Power of main motor	5.5kw
Overall dimensions (Lx Wx H)	2310/2810/3320X1100x1275mm
Net weight	2350/2650/2900kg
