Product Description

DL-CNC660 / CNC Lathe / CNC Turning Lathe / MAXNOVO MACHINE / High Precision Machine For Demanding Users / CNC Lathe Machine / CNC Box-Way Lathe / Lathe / Horizontal Lathes / Lathe Machine / Heavy-Duty Lathe / Precision Lathe / Engine Lathe

This item of DL-CNC660 Industrial Type High Precision CNC Lathe / CNC Lathe Mchine / CNC Machine / Metal CNC Lathe / CNC Lathe For Sale / is designed to perform various types of processing jobs. Counterface turning, drilling, threading and cutting jobs.

High Performance CNC-controlled Flat Bed Lathe Machine for Excellent Precision, Effectiveness, Efficiency and Solid Design

- Spindle Taper Ø 113 mm
- Tailstock Taper MT5
- Max. Swing Over Bed : Ø660 mm
- Distancer Between Centers : 1500 / 2000 / 3000 mm
- Large Spindle Bore up to Ø105 mm is Optional

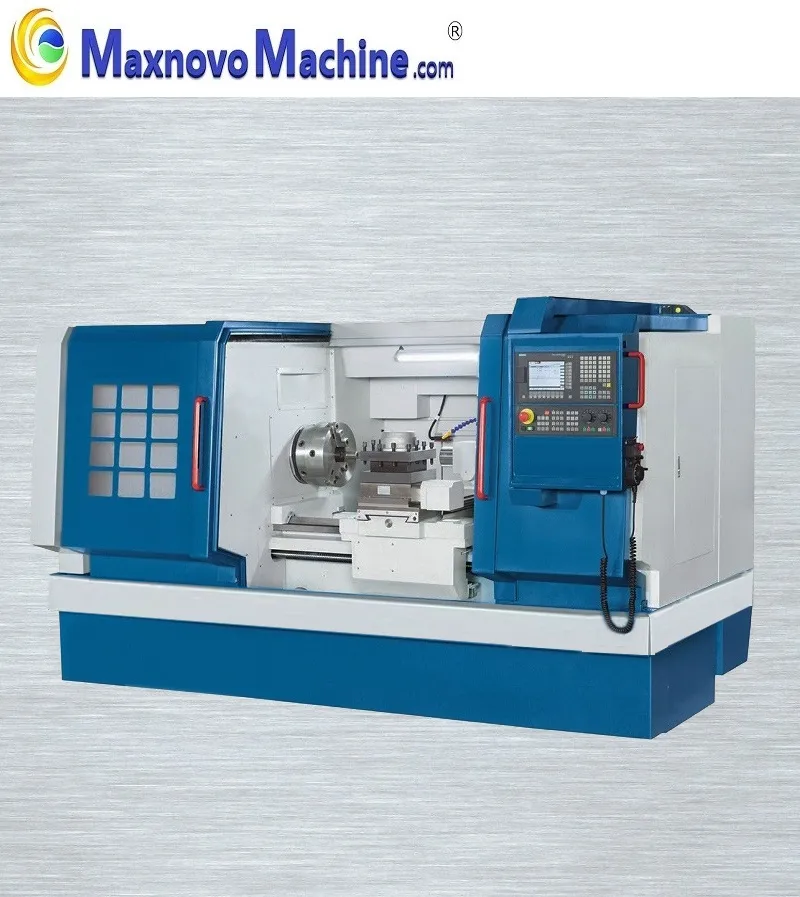

Torno CNC De Cama Plana De Alta Precision (DL-CNC 660, MAXNOVO Machine)

Main Feature :

Convincing Arguments : Quality, Efficiency and Price

-CNC-controlled Flat Bed Lathe Machine

-Max. Swing Over Bed is Ø 660 mm

-Large spindle bore diameter up to Ø 105 mm is Optional

-Complex spindle bearing

-Emergency-Stop push button

-Safety Dual-sliding doors

-Hardened and ground slide ways

-CNC Controlled lathe machine perfect for industry

-Precise machining and central lubrication

-Concentricity on the lathe chuck less than 0.04 mm

-Easy operation and low maintenance cost

-Polished ball screw spindles

-Maintenance-friendly protective housing

-Safety switch on front sliding door

-Central lubrication

-High-quality preloaded ball screws

-Precision workmanship

-Braced machine bed made from grey cast-iron

-Servo motor for X-axis and Z-axis as standard included

-Powerful frequency-conversion variable speed main motor as standard included

-SIEMENS CNC Control of SINUMERIK 808D is optional

-Certificate of Original (CO, FORM A, FORM E, FORM F)

Technical Data :

Product Name :	High Precision CNC Lathe Machine
Product Item :	DL-CNC660 X 1500	DL-CNC660 X 2000	DL-CNC660 X 3000
Bed Type :	Flat Bed	Flat Bed	Flat Bed
Machine Data
Max. Swing over Bed :	Ø 660 mm	Ø 660 mm	Ø 660 mm
Distance Between Centers :	1500 mm	2000 mm	3000 mm
Swing over Cross Slide :	Ø 430 mm	Ø 430 mm	Ø 430 mm
Spindle Bore :	Ø 82 mm	Ø 82 mm	Ø 82 mm
Bed Width :	400 mm	400 mm	460 mm
Headstock
Spindle Taper:	Ø 113 mm	Ø 113 mm	Ø 113 mm
Spindle Speed :	30-1600 RPM	30-1600 RPM	30-1600 RPM
Travel
Max. Travel of X-Axis :	545 mm	545 mm	545 mm
Max. Travel of Z-Axis :	1500 mm	2000 mm	3000 mm
Rapid Speed of X-Axis :	8000 mm /min	8000 mm /min	8000 mm /min
Rapid Speed of Z-Axis :	9000 mm /min	9000 mm /min	9000 mm /min
Tailstock
Tailstock Taper :	MT5	MT5	MT5
Tailstock Quill Stroke :	235 mm	235 mm	235 mm
Tailstock Quill Diameter :	Ø 90 mm	Ø 90 mm	Ø 90 mm
Max. Size of Tool Post :	25 X 25 mm	25 X 25 mm	25 X 25 mm
Nos. of Tool Position :	4 / 6 / 8	4 / 6 / 8	4 / 6 / 8
Precision
Min Setting Input :	0.001mm	0.001mm	0.001mm
Repeat Accuracy :	± 0.006 mm	± 0.006 mm	± 0.006 mm
Positioning Accuracy :	± 0.015 mm	± 0.015 mm	± 0.015 mm
Drive Capacity
Main Motor :	11000W	11000W	11000W
Coolant Pump Motor :	90W	90W	90W
Connection Voltage :	Three Phase 400V voltage
Gross Weight :	4500 KGS	4960 KGS	6180 KGS
Packing Size :	3550 X 1880 X 2150 mm ( For DL-CNC660 X 1500 ) 4050 X 1880 X 2150 mm ( For DL-CNC660 X 2000 ) 5050 X 1880 X 2150 mm ( For DL-CNC660 X 3000 )
Standard Accessory :	3-Jaw Chuck, Coolant System, Central Lubrication System, Machine Lamp, GSK 928TD-L CNC Control System, Tools and Tool-box
