Cheap Price Xk5040 Universal Knee Type Heavy Duty CNC Vertical Milling Machine
Cheap Price Xk5040 Universal Knee Type heavy duty CNC Vertical Milling MachineThe main performance characteristics:The Vertical Knee-type milling machine is widely used in the machining workshop, with optional accessoriesas dividing head, rotary table, machine vice, milling chuck, Digital readout (2......
Send Inquiry
Product Description
Cheap Price Xk5040 Universal Knee Type heavy duty CNC Vertical Milling Machine
The main performance characteristics:The Vertical Knee-type milling machine is widely used in the machining workshop, with optional accessories
as dividing head, rotary table, machine vice, milling chuck, Digital readout (2 dimensional or 3 dimensional).

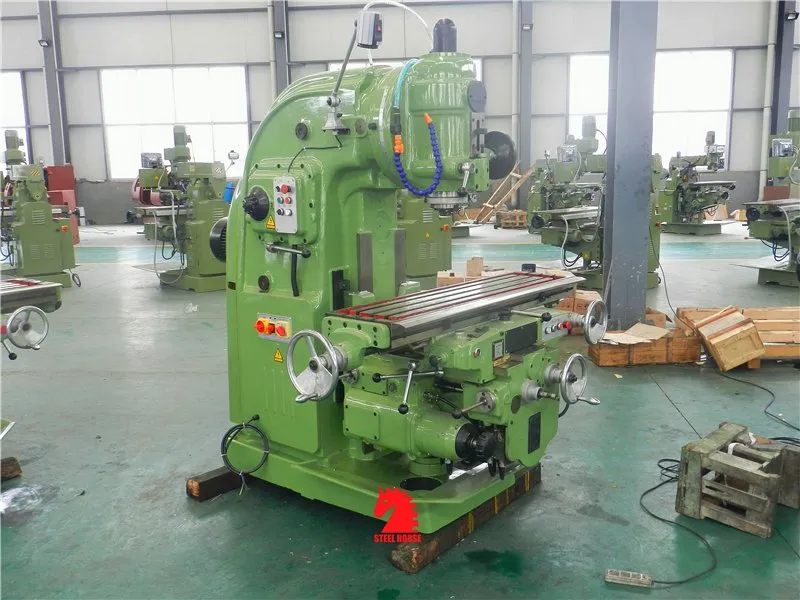

X5032 X5040 manual type Milling Machine Specification:
| Main specification | X5032 | X5040 |
| Table size | 320 x 1325 mm | 400 x 1700 mm |
| Spindle taper | 7:24 ISO 50 | 7:24 ISO 50 |
| Spindle bore | 29 mm | 29 mm |
| Distance from spindle nose to table surface | 60-410 mm | 30-500 mm |
| Distance from spindle axis to bed vertical guide way surface | 350 mm | 450 mm |
| T-slot(number/width/spacing) | 3/18/70 | 3/18/90 |
| Max. longitudinal travel manual/automatic | 700/680 mm | 900/880 mm |
| Max. cross travel manual/automatic | 255/240 mm | 315/300 mm |
| Max. vertical travel manual/automatic | 350/330 mm | 385/365 mm |
| Rapid speed longitudinal/cross/vertical | 2300/1540/770 mm/min | 2300/1540/770 mm/min |
| Max. turning angle of vertical milling head | ±45° | ±45° |
| Spindle travel | 70 mm | 85 mm |
| Number of spindle speed | 18(steps) | 18(steps) |
| Spindle speed range | 30~1500 r.p.m | 30~1500 r.p.m |
| Number of table feed | 18(steps) | 18(steps) |
| Main motor power | 7.5 KW | 11 KW |
| Feed motor power | 2.2 KW | 3 KW |
| Overall dimension | 2294X1770X 1904 | 2556X2159X2258 |
| Net weight/Gross weight | 2900 /3200 | 4250/4350 |

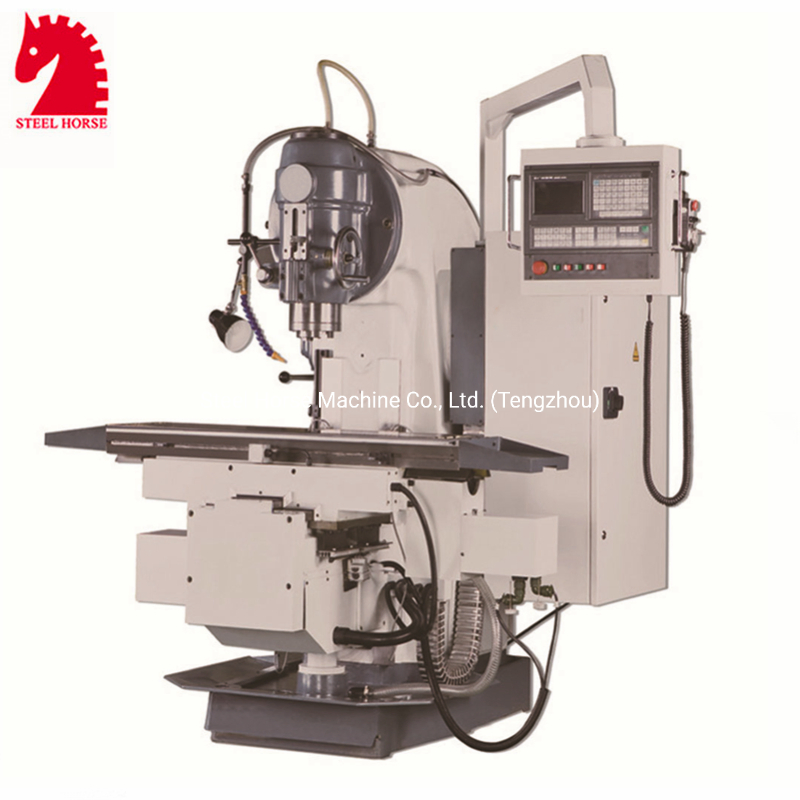

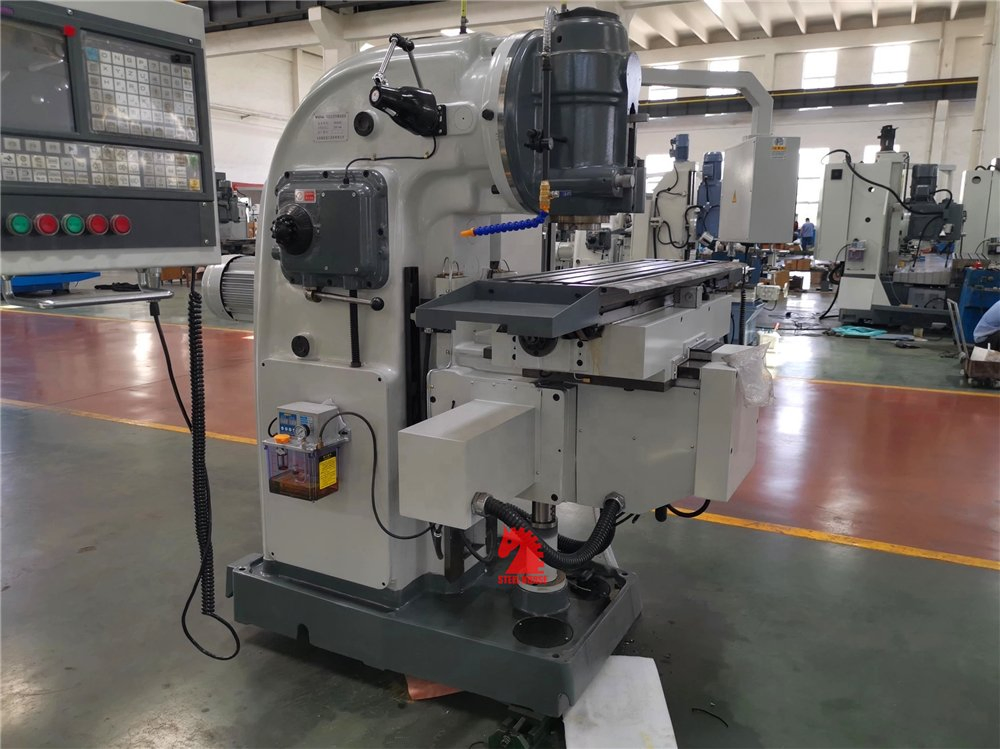

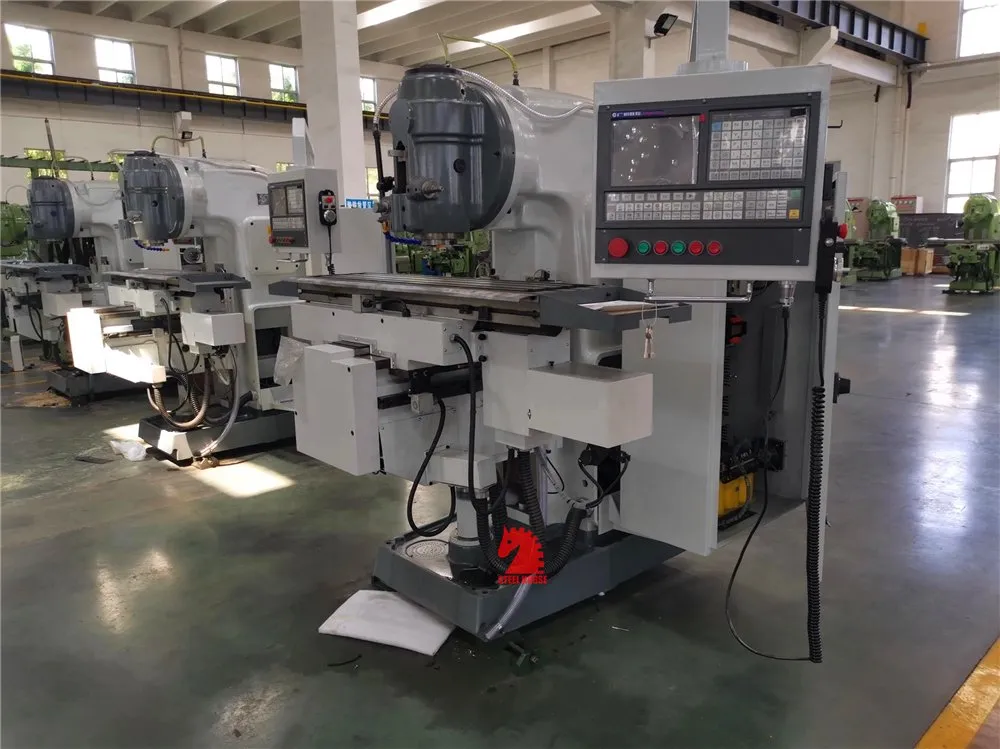

X5032 X5040 CNC type Milling Machine Specification:
| Main specification | XK5032 | XK5040 |
| Table size | 320 x 1325 mm | 400 x 1700 mm |
| Spindle taper | 7:24 ISO 50 | 7:24 ISO 50 |
| Spindle bore | 29 mm | 29 mm |
| Distance from spindle nose to table surface | 60-410 mm | 30-500 mm |
| Distance from spindle axis to bed vertical guide way surface | 350 mm | 450 mm |
| T-slot(number/width/spacing) | 3/18/70 | 3/18/90 |
| Max. longitudinal travel manual/automatic | 700/680 mm | 900/880 mm |
| Max. cross travel manual/automatic | 255/240 mm | 315/300 mm |
| Max. vertical travel manual/automatic | 350/330 mm | 385/365 mm |
| Rapid speed longitudinal/cross/vertical | 2300/1540/770 mm/min | 2300/1540/770 mm/min |
| Max. turning angle of vertical milling head | ±45° | ±45° |
| Spindle travel | 70 mm | 85 mm |
| Number of spindle speed | 18(steps) | 18(steps) |
| Spindle speed range | 30~1500 r.p.m | 30~1500 r.p.m |
| Number of table feed | 18(steps) | 18(steps) |
| Main motor power | 7.5 KW | 11 KW |
| Feed motor power | 2.2 KW | 3 KW |
| Overall dimension | 2294X1770X 1904 | 2556X2159X2258 |
| Net weight/Gross weight | 2900 /3200 | 4250/4350 |
Standard Accessories:
| 1 | Crank | 1 | |
| 2 | Double head spanner | 17*19 | 1 |
| 3 | Double head spanner | 22*24 | 1 |
| 4 | Double head spanner | 27*30 | 1 |
| 5 | Double head spanner | 32*36 | 1 |
| 6 | Inner hexagon spanner | 5,6,8,10 | Total 4 pcs |
| 7 | Single-end spanner | 14 | 1 |
| 8 | Single-end sqanner | 50 | 1 |
| 9 | ISO 50 milling arbor | 1 | |
| 10 | Intermediate casing | 7:24 ISO50/MS4 | 1 |
| 11 | Push grease gun | 1 | |
| 12 | Milling vice | 1 |
No. | Name | Specification | Qty | Remark |
| 1 | Plain vice | 160 | 1 | |
| 2 | Universal dividing head | 1 | include three-jaw chuck | |
| 3 | Swivel table | φ320 | 1 | automatic / manual |
| 4 | Indexable carbide mill tool | φ63 | 1 | |
| 5 | Indexable carbide mill tool | φ100 | 1 | |
| 6 | Indexable carbide mill tool | φ160 | 1 | |
| 7 | Sizing block | 240×120 | 1 | 6 pieces / set |
| 8 | Mill chuck |
