How Does a CI Flexo Printing Machine Improve Flexible Packaging Production?
2026-08-24
Article Summary: A CI Flexo Printing Machine is designed to help packaging manufacturers achieve stable multi-color printing, accurate registration, efficient production, and consistent results across demanding flexible substrates. By supporting the web around a central impression cylinder, the machine can reduce substrate movement during printing and provide a stable foundation for high-quality color-to-color registration. This article explains how a CI flexographic press works, which production problems it addresses, what features buyers should evaluate, and how HuiPeng can support manufacturers looking for a practical printing solution.
Article Outline
- Understanding the role of a CI Flexo Printing Machine
- How the central impression structure works
- Why CI flexo technology matters for flexible packaging
- Key production problems a CI flexo press can solve
- Important machine components and their functions
- Substrate compatibility and application areas
- How to select the right CI Flexo Printing Machine
- Operating and maintenance considerations
- Benefits of working with HuiPeng
- Frequently Asked Questions
- Conclusion
Table of Contents
- What Is a CI Flexo Printing Machine?
- How Does a CI Flexo Printing Machine Work?
- Why Is CI Flexo Technology Important?
- What Production Problems Can It Solve?
- What Are the Main Components?
- What Materials Can It Print?
- Where Is It Commonly Used?
- How Should Buyers Select a CI Flexo Printing Machine?
- How Can Operators Maintain Stable Performance?
- Why Consider HuiPeng?
- Frequently Asked Questions
- Conclusion
1. What Is a CI Flexo Printing Machine?

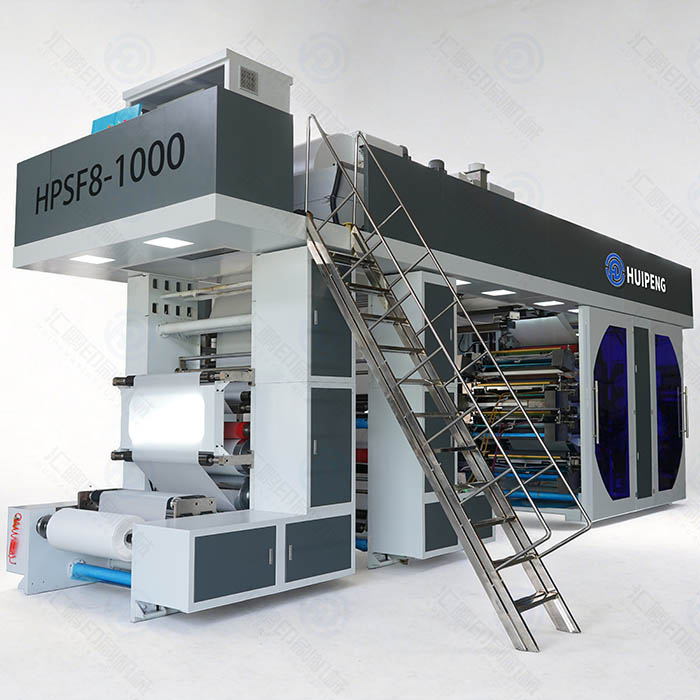

A CI Flexo Printing Machine, also known as a central impression flexographic printing machine, is a web-fed printing system developed for high-quality multi-color printing. Unlike a conventional press in which individual printing units may rely on separate impression cylinders, a CI configuration uses one large central impression cylinder shared by multiple printing stations.
The substrate travels around the central cylinder while each printing unit applies a different color. Because the material remains supported against the same impression surface as it moves through the printing stations, the web can maintain greater positional stability throughout the printing process.
This configuration is particularly useful when manufacturers need to print on flexible or dimensionally sensitive materials. Plastic films, woven polypropylene materials, paper-based substrates, laminates, and other flexible packaging materials can present challenges because they may stretch, contract, wrinkle, or shift during high-speed production.
The central impression structure addresses one of the most important challenges in multi-color flexographic printing: maintaining accurate color-to-color registration while the substrate moves continuously through the press.
2. How Does a CI Flexo Printing Machine Work?
The printing process begins when the substrate is loaded onto the unwinding section. A controlled web path then guides the material toward the central impression cylinder. Tension-control equipment regulates the web so that it enters the printing area in a stable condition.
Once the substrate reaches the central cylinder, it is supported against the cylinder surface as it passes through the individual printing units. Each station transfers one color onto the material.
A typical printing unit contains several important elements:
- Ink supply system: Delivers a consistent quantity of ink to the printing process.
- Anilox roller: Controls ink transfer through precisely structured cells on the roller surface.
- Doctor blade system: Removes excess ink and helps maintain a controlled ink film.
- Plate cylinder: Holds the flexographic printing plate that transfers the image to the substrate.
- Impression cylinder: Provides the pressure and support necessary for image transfer.
- Drying system: Helps dry or cure the printed ink before the substrate reaches the next printing stage or winding section.
After passing through all required printing stations, the printed web continues toward the rewinding system. Automated tension control and coordinated drive systems help maintain stable material movement from unwinding through final winding.
The result is a continuous printing process that combines high production efficiency with controlled registration and repeatable print quality.
3. Why Is CI Flexo Technology Important?
Flexible packaging production often requires a combination of high speed, attractive graphics, precise registration, low material waste, and reliable repeatability. These requirements become more difficult when the substrate is thin, flexible, or sensitive to tension changes.
A CI Flexo Printing Machine provides a stable printing platform by keeping the substrate supported around a large central impression cylinder. This structural advantage can be especially valuable for multi-color packaging designs where even a small registration error can make text, graphics, or color boundaries appear incorrect.
Another important advantage is production continuity. Packaging manufacturers may run long production orders where stopping the machine repeatedly can increase setup time and material waste. A well-configured CI flexo system can help maintain consistent operating conditions throughout extended production runs.
| Production Requirement | CI Flexo Advantage |
|---|---|
| Multi-color printing | Multiple printing stations support complex color designs. |
| Thin flexible substrates | The central cylinder provides continuous web support. |
| Registration accuracy | Stable substrate positioning helps maintain color alignment. |
| High-volume production | Continuous web operation supports efficient long runs. |
| Production consistency | Controlled tension and ink delivery help reduce variation. |
| Packaging versatility | The machine can be configured for different substrates and applications. |
4. What Production Problems Can It Solve?
Choosing a printing machine is rarely about speed alone. Packaging manufacturers usually purchase equipment because they need to solve specific production problems. A CI Flexo Printing Machine can address several of the most common issues encountered in flexible packaging printing.
Registration Errors
When several colors must be printed on the same package, each color needs to align correctly with the others. Substrate movement can make registration difficult, particularly at higher speeds. The central impression configuration provides continuous support that helps minimize unwanted web movement.
Unstable Web Tension
Excessive or inconsistent tension can stretch flexible films or cause material deviation. Either problem can affect print quality. A properly designed tension-control system helps regulate the web before, during, and after the printing process.
High Material Waste
Waste can come from registration adjustments, startup operations, color changes, improper tension, and printing defects. Better automation and more stable machine operation can shorten adjustment periods and reduce the quantity of substrate consumed during setup.
Inconsistent Ink Transfer
Uneven ink delivery can produce differences in density, coverage, and image appearance. Proper coordination between the ink system, anilox roller, doctor blade, printing plate, and substrate helps create a more controlled printing process.
Difficulty Printing Flexible Materials
Films and woven materials are not as rigid as conventional paperboard. They can move or deform when exposed to mechanical forces. A CI configuration is particularly suitable when stable support is required during multi-color printing.
5. What Are the Main Components?
Understanding the main components is important when comparing different machines. A press may look similar externally, but the quality of its control systems, mechanical construction, tension management, and printing components can significantly affect real production performance.
- Unwinding unit: Feeds the substrate into the production line at a controlled rate.
- Tension-control system: Helps prevent excessive stretching, slackness, and web deviation.
- Central impression cylinder: Provides the primary support surface for the substrate.
- Printing units: Apply individual colors to build the final printed image.
- Ink circulation system: Maintains a continuous and controlled supply of ink.
- Drying equipment: Helps prepare the printed surface for subsequent printing or winding.
- Registration system: Allows operators or automated controls to maintain alignment between colors.
- Rewinding unit: Collects the finished web into a controlled roll.
- Control system: Coordinates machine functions and provides operators with production parameters.
When these components operate as an integrated system, manufacturers can achieve a more predictable production workflow rather than relying heavily on manual corrections.
6. What Materials Can It Print?
One of the strongest reasons to consider a CI Flexo Printing Machine is its flexibility in substrate selection. The exact material range depends on machine configuration, ink technology, drying capability, printing requirements, and substrate specifications.
| Substrate | Typical Considerations |
|---|---|
| PE Film | Suitable for flexible packaging and film-based products when proper ink adhesion is achieved. |
| PP Film | Commonly used for packaging and woven-product applications. |
| BOPP | Often selected for packaging requiring attractive graphics and dimensional stability. |
| PET Film | Useful for applications requiring strength and dimensional stability. |
| Paper | Suitable for selected packaging and industrial printing applications. |
| Woven PP | Used for bags and industrial packaging where durable printed graphics are required. |
| Laminated Materials | Can be used for packaging structures containing multiple material layers, subject to the machine and ink configuration. |
7. Where Is It Commonly Used?
CI flexographic printing technology is widely associated with flexible packaging because it combines continuous production with multi-color printing capability. Its applications can extend across food, consumer products, industrial packaging, and other printed materials.
- Food packaging bags
- Snack and confectionery packaging
- Pet food packaging
- Daily chemical product packaging
- Industrial packaging films
- PP woven bags
- Plastic shopping bags
- Labels and printed film products
- Paper and flexible packaging materials
- Specialized packaging requiring multi-color graphics
For manufacturers serving several packaging markets, substrate flexibility and configurable printing capacity can be more valuable than optimizing the machine for only one product type.
8. How Should Buyers Select a CI Flexo Printing Machine?
Purchasing a CI Flexo Printing Machine should begin with the production requirements rather than the machine's maximum advertised speed. A machine that is too small can restrict future production, while an unnecessarily oversized configuration may increase investment and operating costs.
Evaluate Printing Width
Determine the maximum web width required by your current products and consider whether future packaging formats may require wider material. Printing width should match the actual production range instead of being selected solely according to the largest possible specification.
Determine the Required Number of Colors
Four-color printing may be sufficient for some products, while complex packaging designs may require six, eight, or more printing units. Consider the artwork requirements of your existing customers as well as expected future orders.
Check Production Speed
Maximum mechanical speed does not necessarily represent the speed at which every job can be produced. Ask how the machine performs under realistic conditions, including different substrates, ink systems, printing repeats, and artwork complexity.
Examine Registration Control
Registration stability should be one of the most important purchasing criteria. Ask about the control architecture, adjustment method, response during acceleration and deceleration, and ability to maintain registration during long production runs.
Consider Ink and Drying Requirements
Your choice of water-based, solvent-based, or other ink technologies can influence the required drying configuration. The machine should be matched to the actual ink system and substrate combination used by your factory.
Evaluate Automation
Modern packaging production increasingly depends on automation to reduce operator workload and production variation. Features such as automatic tension control, registration adjustment, centralized machine controls, and monitoring functions can improve daily usability.
Look Beyond the Initial Purchase Price
A printing press is a long-term production asset. Buyers should evaluate maintenance requirements, component availability, operator training, installation support, energy consumption, production stability, and after-sales service rather than comparing machines based only on purchase price.
9. How Can Operators Maintain Stable Performance?
Even a well-engineered printing machine requires appropriate operation and maintenance. Consistent maintenance helps preserve printing quality and reduces the risk of unexpected downtime.
- Inspect anilox rollers regularly and keep their surfaces clean.
- Check doctor blades for wear and replace damaged components promptly.
- Maintain proper ink viscosity and circulation according to the selected ink system.
- Inspect printing plates for damage, contamination, or improper mounting.
- Monitor web tension throughout the production process.
- Keep the central impression cylinder clean and free from material contamination.
- Check bearings, drive components, and mechanical connections according to the maintenance schedule.
- Review registration performance when changing substrate types or printing conditions.
- Keep sensors and control components clean and properly calibrated.
- Train operators to identify abnormal vibration, tension changes, ink-transfer problems, and registration drift.
Preventive maintenance is generally more effective than waiting for a mechanical or printing problem to interrupt production. A structured maintenance routine can also help operators identify small deviations before they become expensive quality problems.
10. Why Consider HuiPeng?
For packaging manufacturers evaluating a CI Flexo Printing Machine, the most important consideration is how well the equipment fits the factory's actual production requirements. HuiPeng focuses on flexographic printing machinery designed for applications where printing accuracy, productivity, substrate compatibility, and stable operation are important.
HuiPeng's CI flexographic printing solutions are designed around the central impression configuration, supporting multi-color printing while maintaining stable substrate movement through the printing stations. Depending on the required production configuration, manufacturers can evaluate factors such as printing width, color capacity, printing repeat, substrate type, ink system, automation level, and production speed.
A practical equipment selection process should begin with the products you manufacture. For example, a company primarily producing PP woven bags may have different requirements from a converter producing premium flexible food packaging. Substrate characteristics, artwork complexity, production volume, and finishing processes should all be considered before selecting the final configuration.
HuiPeng can work with customers to evaluate these requirements and determine a suitable CI printing configuration rather than treating every packaging application as identical.
11. CI Flexo Printing Machine Selection Checklist
| Item | Questions to Ask Before Purchase |
|---|---|
| Substrate | What films, paper, woven materials, or laminates will be printed? |
| Printing width | What is the required maximum web and effective printing width? |
| Colors | How many colors are required for current and future products? |
| Printing repeat | What range of repeat lengths must the machine accommodate? |
| Speed | What production speed is realistic for the target substrate and ink? |
| Ink | Will the machine use water-based, solvent-based, or another ink system? |
| Registration | How will color registration be adjusted and monitored? |
| Automation | Which automatic functions can reduce operator workload and setup time? |
| Maintenance | How easy are critical components to inspect, clean, replace, and service? |
| Technical support | What installation, commissioning, training, and after-sales assistance is available? |
12. Frequently Asked Questions
What does CI mean in flexographic printing?
CI means Central Impression. In a CI flexographic press, multiple printing units are arranged around one large central impression cylinder. The substrate remains supported around this cylinder as it passes through the printing stations.
What is the main advantage of a CI Flexo Printing Machine?
The central impression configuration provides stable substrate support during multi-color printing. This can help improve registration consistency, particularly when printing on flexible films and other dimensionally sensitive substrates.
How many colors can a CI flexo press print?
The number of colors depends on the machine configuration. CI flexographic machines can be configured with different numbers of printing stations according to the customer's artwork, substrate, and production requirements.
Can a CI flexo press print plastic film?
Yes. CI flexographic presses are commonly used for flexible substrates such as PE, PP, BOPP, PET, and other film structures. The exact substrate compatibility depends on the machine configuration, ink system, drying system, and printing requirements.
Is a CI Flexo Printing Machine suitable for PP woven bags?
Yes. CI flexographic technology can be configured for PP woven bag printing. The appropriate machine should be selected according to bag material, printing width, required colors, print repeat, ink type, production volume, and desired automation level.
Can the machine use water-based ink?
Depending on the configuration, CI flexographic printing systems can be designed for water-based ink or other suitable ink technologies. Drying capacity and substrate characteristics should be considered when specifying the complete printing line.
What causes poor color registration on a flexo press?
Possible causes include unstable web tension, substrate deformation, incorrect plate mounting, mechanical wear, unsuitable printing parameters, or problems with registration control. A systematic inspection of the web path, printing units, plates, and control system is usually required.
How can printing waste be reduced?
Waste can be reduced through stable tension control, accurate registration adjustment, efficient plate setup, appropriate ink management, operator training, preventive maintenance, and automation that reduces the amount of material required during setup and adjustment.
What should I provide when requesting a CI flexo machine quotation?
Useful information includes substrate type, material thickness, maximum web width, effective printing width, required number of colors, print repeat range, target production volume, ink type, expected printing speed, and desired automation functions. Providing these details allows the machine configuration to be matched more accurately to the application.
13. Conclusion
A CI Flexo Printing Machine is more than a high-speed printing device. Its central impression architecture provides a stable foundation for multi-color flexographic printing, making it particularly valuable for flexible packaging applications where registration, substrate control, print consistency, and production efficiency are critical.
The right machine should be selected according to the complete production process. Printing width, number of colors, substrate characteristics, ink technology, drying requirements, tension control, automation, maintenance, and technical support all influence the final result.
For manufacturers looking to improve flexible packaging production, investing in a properly configured CI flexographic printing system can provide a practical path toward more stable printing, reduced production waste, improved productivity, and consistent finished products.
