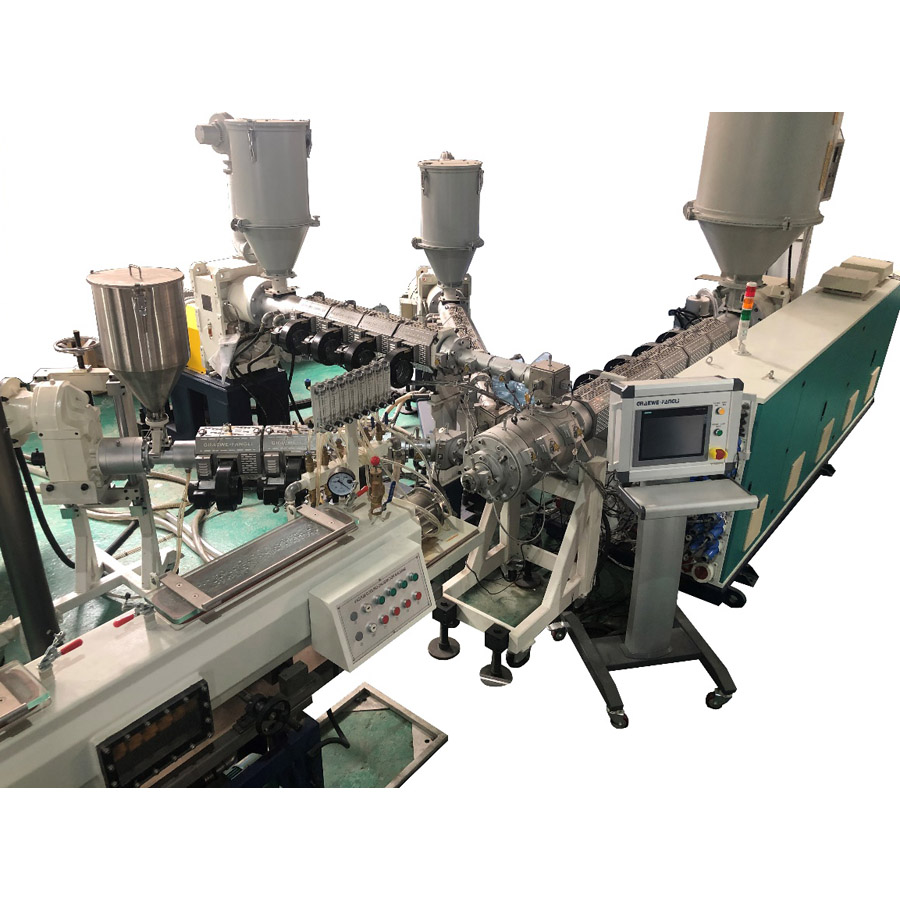

How Does Microbending Impact Signal Integrity Within an Optical Fiber Communication Bundle Pipe
2026-04-17
Microbending is one of the most subtle yet destructive forces affecting signal transmission in modern fiber optic networks. Within an Optical Fiber Communication Bundle Pipe, such as those manufactured by Fangli, even microscopic curvatures in the fiber core can lead to significant optical power loss. This blog explores the physics behind microbending, its measurable effects on signal integrity, and how the right bundle pipe design preserves data fidelity.
The Mechanism of Microbending Loss
Microbending refers to tiny, random fluctuations in the fiber axis—typically micrometer-scale deformations caused by uneven pressure, thermal expansion, or rough conduit surfaces. When light traveling through the fiber core encounters these bends, a portion of the optical energy couples from guided modes into radiative or cladding modes, escaping the fiber entirely. Within a poorly designed Optical Fiber Communication Bundle Pipe, these losses accumulate per kilometer, degrading signal-to-noise ratio (SNR) and increasing bit error rates (BER).
Quantified Impact on Signal Integrity
The table below summarizes key performance parameters affected by microbending:
| Parameter | Without Microbending | With Microbending (typical) | Consequence |
|---|---|---|---|
| Attenuation (dB/km) | 0.2 – 0.3 | 0.8 – 3.5 | Reduced link length |
| Bit Error Rate (BER) | 10⁻¹² | 10⁻⁸ – 10⁻⁶ | Packet retransmission |
| Optical Return Loss (ORL) | > 35 dB | < 20 dB | Transceiver instability |
| Modal Dispersion (ps/km) | < 0.1 | 0.5 – 2.0 | Bandwidth limitation |
Why Bundle Pipe Design Matters
A high-quality Optical Fiber Communication Bundle Pipe minimizes microbending through three critical features: precise tube geometry, controlled fiber excess length, and a smooth inner surface. Fangli integrates helical stranding and buffer layers that allow fibers to float freely within the bundle, absorbing external pressure without transferring strain to the glass. In contrast, rigid or uneven pipes amplify microbending sensitivity, especially in cold climates where material contraction increases lateral forces.
Fangli’s engineering data shows that adopting an optimized bundle pipe reduces microbending-induced loss by 67% compared to conventional loose-tube designs over a 10km span at 1550nm wavelength.
Optical Fiber Communication Bundle Pipe FAQ – Common Questions
What is the main difference between microbending and macrobending in an Optical Fiber Communication Bundle Pipe
Microbending involves microscopic, distributed curvatures below 1mm radius that cause gradual, cumulative loss over long distances, while macrobending refers to single, visible bends above 5mm radius that produce immediate, localized high attenuation. Within an Optical Fiber Communication Bundle Pipe, microbending is more dangerous because it is invisible during visual inspection and can only be detected using OTDR (Optical Time-Domain Reflectometer) analysis. Fangli bundle pipes are tested for both bend types using IEC 60793-1-47 standards.
How can installers prevent microbending damage when pulling an Optical Fiber Communication Bundle Pipe through ducts
Installers must maintain a pulling tension below 600N (for 12-fiber bundles) and a bend radius never less than 20 times the pipe outer diameter. Using Fangli recommended lubricants reduces friction between the bundle pipe and duct wall, preventing pressure points that cause microbending. Additionally, leaving 2-3% fiber slack length inside the pipe allows thermal contraction without inducing microcurvatures. Post-installation, an OTDR baseline measurement should be recorded at 1310nm and 1550nm to detect early microbending signatures.
Does temperature cycling permanently affect microbending loss in an Optical Fiber Communication Bundle Pipe
Yes, temperature cycling can permanently increase microbending loss if the bundle pipe lacks proper fiber overstuffing or low-modulus buffer materials. When temperatures drop, most materials contract faster than glass fibers, squeezing the fiber against the pipe wall. Fangli bundle pipes incorporate a temperature-stable gel compound and a secondary coating that maintains fiber separation between -40°C and +85°C. Repeated cycling may still cause incremental loss if the initial excess fiber length ratio is below 0.5%. After 100 thermal cycles, Fangli pipes show less than 0.05 dB/km additional loss, whereas non-optimized designs often exceed 0.3 dB/km.
Conclusion and Contact Action
Microbending is not an abstract theory—it is a measurable, preventable threat to every kilometer of fiber you deploy. Choosing the right Optical Fiber Communication Bundle Pipe directly determines your network’s long-term reliability, bandwidth capacity, and maintenance costs. Fangli combines advanced polymer technology, precision extrusion, and rigorous ISO-tested quality control to deliver bundle pipes that preserve signal integrity across extreme environments.
Contact us today for a customized microbending loss analysis and a free sample of Fangli’s latest Optical Fiber Communication Bundle Pipe series. Our engineering team provides OTDR simulation reports and installation guides tailored to your project specifications.
