How to Maintain a Double Sealed Conveyor Transfer Chute for Optimal Performance
2026-06-16
Maintaining a Double Sealed Conveyor Transfer Chute is critical for bulk handling operations. At Wuyun, we have seen how proper maintenance reduces dust, prevents material spillage, and extends equipment life. Without routine care, even the best-engineered chute will underperform.
Why Maintenance Matters for a Double Sealed Conveyor Transfer Chute

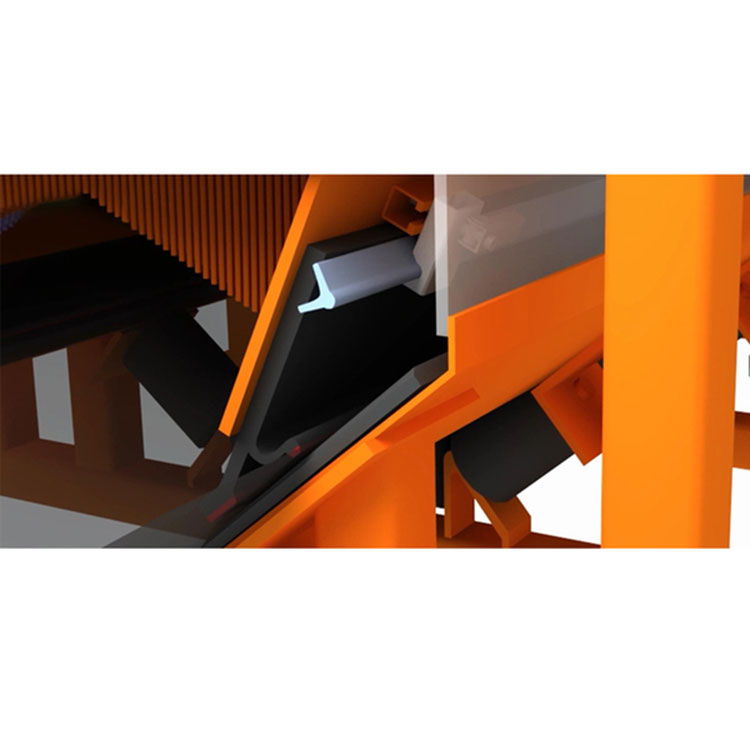

The Double Sealed Conveyor Transfer Chute uses dual sealing layers to contain fugitive dust and ensure smooth material flow. However, abrasion, impact, and material buildup can degrade the seals over time. A structured maintenance plan delivers three benefits:
-
Lower total operating costs
-
Reduced airborne dust emissions
-
Fewer unplanned downtime events
Weekly Inspection Checklist
| Component | Action Required | Acceptable Condition |
|---|---|---|
| Outer seal strips | Visual check for tears or gaps | No visible cracks or missing sections |
| Inner wear liner | Thickness measurement | Minimum 80% of original thickness |
| Skirt rubber | Check for hardening or curling | Flexible and snug against belt |
| Access doors | Confirm gasket compression | No dust leakage around edges |
Step-by-Step Maintenance Procedure
Follow these steps to keep your Double Sealed Conveyor Transfer Chute performing at its peak:
-
Isolate and lock out power to the conveyor system.
-
Open access doors and remove accumulated material using a soft tool (plastic scraper).
-
Inspect both seal layers from top to bottom. Pay special attention to transfer points.
-
Replace any outer seal showing wear beyond 30% of its original profile.
-
Verify the inner seal’s compression against the belt surface – adjust tension if needed.
-
Clean all dust collection ports and pressure relief vents.
-
Run a short test cycle and check for visible dust escape.
Wuyun recommends documenting each inspection with photos and wear measurements for trend analysis.
Common Wear Patterns and Solutions
| Wear Indicator | Likely Cause | Wuyun Recommended Fix |
|---|---|---|
| Outer seal frayed on one side | Misaligned belt | Realign belt within ±2 mm |
| Inner seal worn evenly | Normal abrasion | Schedule replacement every 6 months |
| Dust escaping from access joints | Gasket aging | Replace all access door gaskets |
| Material packing between seals | Insufficient slope angle | Increase chute drop angle by 5–7 degrees |
Double Sealed Conveyor Transfer Chute FAQ
Q: How often should the dual seals be fully replaced on a Double Sealed Conveyor Transfer Chute?
A: Based on Wuyun field data from 200+ installations, the replacement interval depends on conveyed material. For abrasive ores (e.g., iron ore, coke), replace both seals every 4–6 months. For free-flowing grains or pellets, the interval extends to 12–18 months. A visual check every two weeks is the safest practice. If you see dust trails or hear air whistling near the skirt area, replace the seals immediately regardless of time in service.
Q: What is the most common mistake operators make when maintaining this Double Sealed Conveyor Transfer Chute?
A: The most frequent error is overtightening the inner seal against the belt. Many operators assume tighter seals mean less dust. In reality, overtightening accelerates both seal wear and belt cover damage. The correct method is to set the inner seal just to contact the belt surface with no gap, then add only one full turn on compression bolts. Wuyun provides a tension gauge tool with every chute system to eliminate guesswork.
Q: Can a Double Sealed Conveyor Transfer Chute be retrofitted to an existing conveyor without changing the support structure?
A: Yes, in most cases. Wuyun has designed retrofit kits for 14 different conveyor frame types. The retrofit requires removing the old skirtboard and mounting brackets, then welding or bolting new seal rail mounts to the existing stringers. No structural steel modification is needed for 85% of standard CEMA-rated conveyors. A site survey is recommended to confirm clearance for access doors and seal replacement space.
Performance Tracking Table
Record these metrics monthly to verify optimal performance:
| Metric | Target Value | Action if Out of Range |
|---|---|---|
| Visible dust at chute outlet | Zero plume | Inspect outer seal layer |
| Material spillage (kg per 1000 tons) | <0.5 kg | Check inner seal compression |
| Seal replacement cost per year | Within budget ±10% | Review wear patterns |
| Chute inspection time (per visit) | ≤25 minutes | Optimize access door layout |
Contact Wuyun Today
A well-maintained Double Sealed Conveyor Transfer Chute directly improves your bottom line and environmental compliance. Wuyun offers on-site maintenance training, seal replacement kits, and remote performance audits. Contact us for a free wear assessment of your current transfer chute – our engineers will provide a detailed improvement plan within 48 hours.
