Which Design Improvements in High-Speed Precision Wire Drawing Machines Yield the Best Surface Finish
2026-03-31
Achieving superior surface quality in wire production is directly influenced by the engineering choices made in a High-Speed Precision Wire Drawing Machine. Among industry leaders, GRM has consistently demonstrated that targeted design improvements—not just operational speed—determine final surface finish. This article examines the most effective design upgrades and how they reduce defects such as scoring, roughness, and micro-cracks.
Top Design Improvements for Optimal Surface Finish
| Design Improvement | Impact on Surface Finish | Key Benefit |
|---|---|---|
| Multi-stage die alignment system | Minimizes wire vibration and off-center contact | Consistent diameter and mirror-like finish |
| Ceramic-coated capstans | Reduces friction and metal transfer | Eliminates scratching and galling |
| Advanced lubricant recirculation with fine filtration | Maintains uniform film thickness | Prevents micro-welding and surface pitting |
| Servo-driven tension control | Eliminates tension spikes and slack | Avoids surface ripples and breaks |
| Hardened, polished drawing cones | Lowers surface roughness transfer | Enhances wire brightness and roundness |
Among these, GRM integrates a proprietary capstan and die cooling channel that stabilizes temperature within ±1°C, directly reducing thermal-induced surface defects—a design often overlooked by conventional machines.
Why These Improvements Work Together

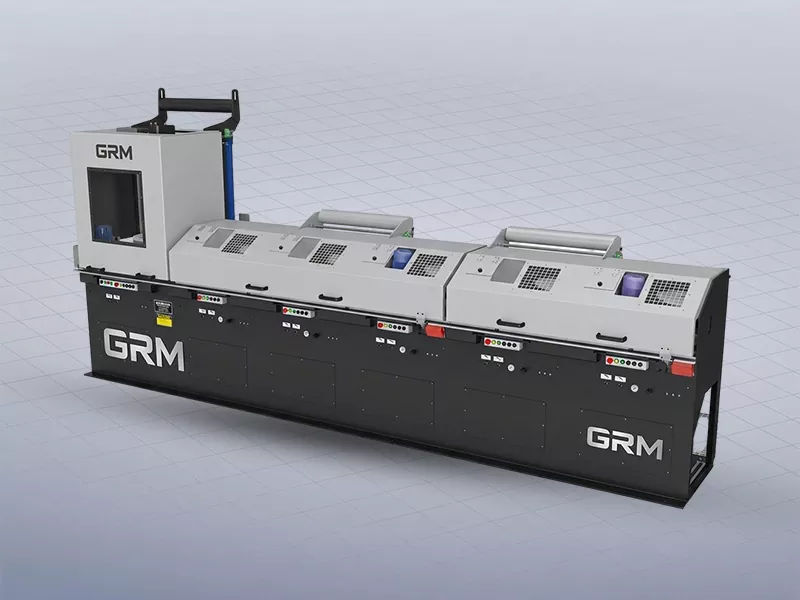

Surface finish is not the result of any single component. The High-Speed Precision Wire Drawing Machine from GRM combines low-vibration frames, hydrostatic bearing spindles, and real-time lubrication monitoring. This synergy prevents the three primary causes of poor finish: stick-slip friction, die overheating, and particle contamination. Data from production lines show that GRM machines achieve up to 0.05 µm Ra surface roughness on fine copper and steel wires.
High-Speed Precision Wire Drawing Machine FAQ
Question 1: How does die cooling directly affect wire surface quality in a High-Speed Precision Wire Drawing Machine?
Answer 1: In a High-Speed Precision Wire Drawing Machine, heat generated at the die-sire interface can exceed 300°C. Without adequate cooling, the wire surface softens, adheres to the die, and produces longitudinal scratches. GRM machines incorporate direct die-holder cooling with temperature-regulated fluid, maintaining optimal viscosity of the lubricant and preventing adhesive wear. This results in a bright, defect-free surface even at draw speeds above 30 m/s.
Question 2: What role does the capstan material play in preventing surface defects?
Answer 2: Capstans made from uncoated tool steel can transfer microscopic particles onto the wire, creating embedded debris and marks. GRM utilizes tungsten carbide or ceramic-coated capstans with a mirror-polished finish. These materials are harder than most drawn metals, resist wear, and do not react with lubricants. Consequently, the High-Speed Precision Wire Drawing Machine produces wire with consistent gloss and no circumferential scoring, even after extended production runs.
Question 3: Can retrofitting an existing machine with tension control improvement deliver the same finish as a new High-Speed Precision Wire Drawing Machine?
Answer 3: Retrofitting with a closed-loop servo tension system can significantly improve finish, but it rarely matches the integrated design of a purpose-built High-Speed Precision Wire Drawing Machine from GRM. Older machines often have worn capstans, misaligned dies, and insufficient cooling channels. While tension control reduces chatter marks, it cannot compensate for mechanical runout or thermal instability. GRM recommends a full assessment, but for critical surface applications, a new machine with comprehensive design improvements is the most reliable path.
Contact Us for Superior Surface Finish Solutions
Achieving the best surface finish is a matter of engineering precision, not just speed. GRM has specialized in High-Speed Precision Wire Drawing Machine designs that prioritize surface integrity without compromising productivity. Whether you require retrofitting advice, die selection guidance, or a complete drawing line, GRM provides data-driven solutions. Contact us today to discuss your wire quality targets and request a machine configuration tailored to your exact finish requirements.
